Removal [10/2014 - ]: Procedure
- DRAIN ENGINE OIL
Refer to PROCEDURE - Step 1 [10/2014 - 05/2018] , or refer to PROCEDURE - Step 1 [05/2018 - ]
- REMOVE FUEL PUMP ASSEMBLY (for High Pressure)
Refer to REMOVAL [10/2014 - 09/2015] , or refer to REMOVAL [09/2015 - 09/2017] , or refer to REMOVAL [09/2017 - ]
- REMOVE REAR ENGINE UNDER COVER RH
See step 8 [10/2014 - 09/2016], or see step 8 [09/2016 - 05/2019], or see step 8 [05/2019 - ]
- REMOVE FAN AND GENERATOR V BELT
See step 2

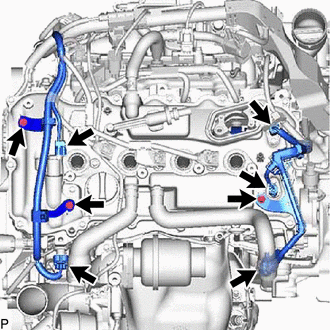

- REMOVE NO. 2 INTERCOOLER COOLING WATER PIPE
- Slide the hose clip and disconnect the No. 6 sub-radiator hose from the No. 2 water by-pass pipe.

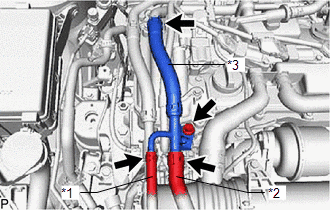

*1 No. 1 Turbo Water Hose *2 No. 1 Sub-radiator Hose *3 No. 6 Sub-radiator Hose - Slide the hose clip and disconnect the No. 1 turbo water hose from the No. 2 intercooler cooling water pipe.
- Slide the hose clip and disconnect the No. 1 sub-radiator hose from the No. 2 intercooler cooling water pipe.
- Remove the bolt and No. 2 intercooler cooling water pipe.
- Slide the hose clip and disconnect the No. 6 sub-radiator hose from the No. 2 water by-pass pipe.
- REMOVE NO. 3 INTERCOOLER COOLING WATER PIPE
See step 36 [10/2014 - 09/2016], or see step 36 [09/2016 - 05/2019], or see step 36 [05/2019 - ]
- REMOVE IGNITION COIL ASSEMBLY
Refer to PROCEDURE - Step 2 [10/2014 - ]
- DISCONNECT ENGINE WIRE
- REMOVE CYLINDER HEAD COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 10 [10/2014 - 09/2015] , or refer to PROCEDURE - Step 12 [09/2015 - ]
- REMOVE VACUUM PUMP ASSEMBLY
Refer to PROCEDURE - Step 4 [10/2014 - ]
- SET NO. 1 CYLINDER TO TDC/COMPRESSION
- Turn the crankshaft until the timing mark (groove) of the crankshaft pulley assembly and the timing mark "0" of the timing chain cover assembly are aligned.

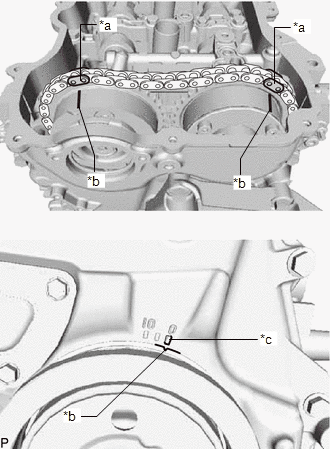

*a Paint Mark *b Timing Mark (Groove) *c Timing Mark "0" - Check that each timing mark of the camshaft timing gear assembly and camshaft timing exhaust gear assembly are located as shown in the illustration. If not, turn the crankshaft 1 revolution (360°) to align the timing marks as shown in the illustration.
- Place paint marks on the chain sub-assembly in alignment with the timing marks on the camshaft timing gear assembly and camshaft timing exhaust gear assembly.
- Turn the crankshaft until the timing mark (groove) of the crankshaft pulley assembly and the timing mark "0" of the timing chain cover assembly are aligned.
- REMOVE TIMING CHAIN COVER PLATE
Refer to PROCEDURE - Step 32 [10/2014 - 09/2015] , or refer to PROCEDURE - Step 34 [09/2015 - ]
- REMOVE NO. 1 CHAIN TENSIONER ASSEMBLY
- Turn the crankshaft approximately 15° clockwise.

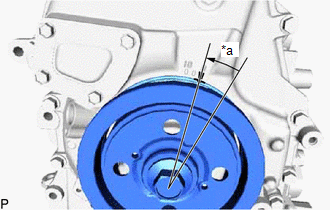

*a Approximately 15° - Turn the crankshaft approximately 15° counterclockwise.
*a Approximately 15° - Align the holes of the stopper plate and No. 1 chain tensioner assembly, and insert a pin into the stopper plate hole to lock the No. 1 chain tensioner assembly.
*a Stopper Plate *b Pin - Turn the crankshaft approximately 15° clockwise.
*a Approximately 15° - Remove the bolt and nut, No. 1 chain tensioner assembly and gasket.NOTE:
Make sure not to drop the gasket inside the timing chain cover assembly.
- Turn the crankshaft approximately 15° counterclockwise.
*a Approximately 15°
- Turn the crankshaft approximately 15° clockwise.
- REMOVE TIMING CHAIN GUIDE
Refer to PROCEDURE - Step 35 [10/2014 - 09/2015] , or refer to PROCEDURE - Step 37 [09/2015 - ]
- REMOVE CAMSHAFT TIMING OIL CONTROL SOLENOID ASSEMBLY
Refer to PROCEDURE - Step 1 [10/2014 - ]
- REMOVE CAMSHAFT TIMING GEAR BOLT
- REMOVE CAMSHAFT BEARING CAP
- Using several steps, remove the 11 bearing cap bolts in the sequence shown in the illustration.
- Using several steps, remove the 10 bearing cap bolts in the sequence shown in the illustration.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
NOTE:Make sure to loosen the bearing cap bolts evenly while holding the camshaft horizontally.
- Remove the 4 camshaft bearing caps.
HINT:
Arrange the removed parts in the correct order.

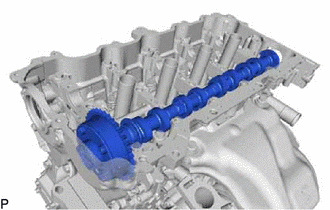

- REMOVE CAMSHAFT

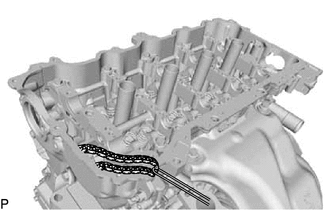

- REMOVE CAMSHAFT TIMING GEAR ASSEMBLY

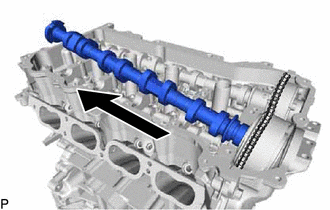

- REMOVE NO. 2 CAMSHAFT
- REMOVE CAMSHAFT TIMING EXHAUST GEAR ASSEMBLY

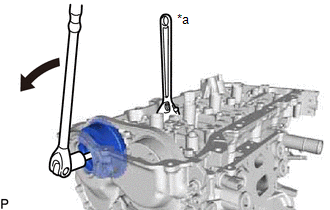

- Using SST, grip the hexagonal portion, and then secure the SST and No. 2 camshaft in a vise as shown in the illustration.
- SST: 09212-31010
*a Hexagonal Portion NOTE:- Do not damage the No. 2 camshaft.
- Never grip areas other than the hexagonal portion, as this may cause damage.
- Remove the bolt and camshaft timing exhaust gear assembly.NOTE:
- Be careful not to damage the No. 2 camshaft and camshaft timing exhaust gear assembly.
- Do not disassemble the camshaft timing exhaust gear assembly.
- Using SST, grip the hexagonal portion, and then secure the SST and No. 2 camshaft in a vise as shown in the illustration.
- REMOVE OIL CONTROL VALVE FILTER
Refer to PROCEDURE - Step 46 [10/2014 - 09/2015] , or refer to PROCEDURE - Step 48 [09/2015 - ]
- REMOVE NO. 1 CAMSHAFT BEARING
Refer to PROCEDURE - Step 49 [10/2014 - 09/2015] , or refer to PROCEDURE - Step 51 [09/2015 - ]
- REMOVE NO. 2 CAMSHAFT BEARING
Refer to PROCEDURE - Step 50 [10/2014 - 09/2015] , or refer to PROCEDURE - Step 52 [09/2015 - ]
- INSPECT CAMSHAFT TIMING EXHAUST GEAR ASSEMBLY
Refer to PROCEDURE - Step 6 [10/2014 - ]
