Removal [10/2014 - 05/2019]: Procedure

  1. PRECAUTION
    NOTE:

    After turning the engine switch off, waiting time may be required before disconnecting the cable from the battery terminal. Therefore, make sure to read the disconnecting the cable from the battery terminal notice before proceeding with work.

    Refer to PRECAUTION [10/2014 - 09/2017] , or refer to PRECAUTION [09/2017 - 05/2019]

  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Refer to INITIALIZATION [10/2014 - 09/2017] , or refer to INITIALIZATION [09/2017 - 05/2019]

  3. REMOVE REAR ENGINE UNDER COVER RH

    Refer to PROCEDURE - Step 1 [10/2014 - ]

  4. REMOVE FAN AND GENERATOR V BELT

    Refer to PROCEDURE - Step 2 [10/2014 - ]

  5. REMOVE FRONT NO. 2 EXHAUST PIPE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 1 [10/2014 - ]

  6. REMOVE GENERATOR ASSEMBLY

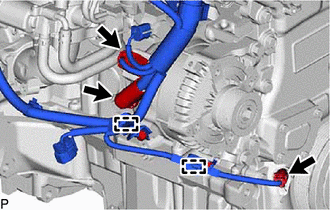

    1. Disconnect the crank position sensor connector and detach the 2 clamps.
      GTY501304Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the terminal cap.
    3. Remove the nut and disconnect the wire harness from terminal B.
    4. Disconnect the generator connector and wire harness.

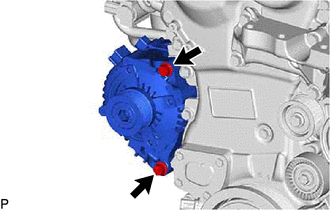

    5. Remove the 2 bolts and generator assembly.
      GTY501303Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

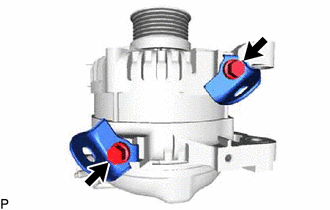

    6. Remove the 2 bolts and 2 wire harness clamp brackets.
      GTY521737Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
