System Diagram [04/2013 - 08/2015]

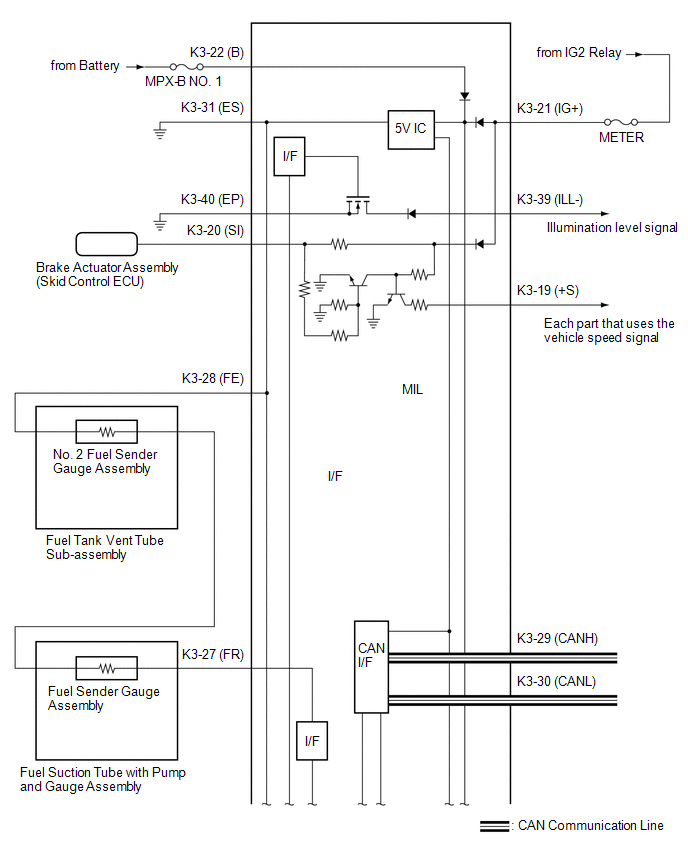

    Fig 1: Meter / Gauge System Diagram (1 Of 3)
    GTY461940Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

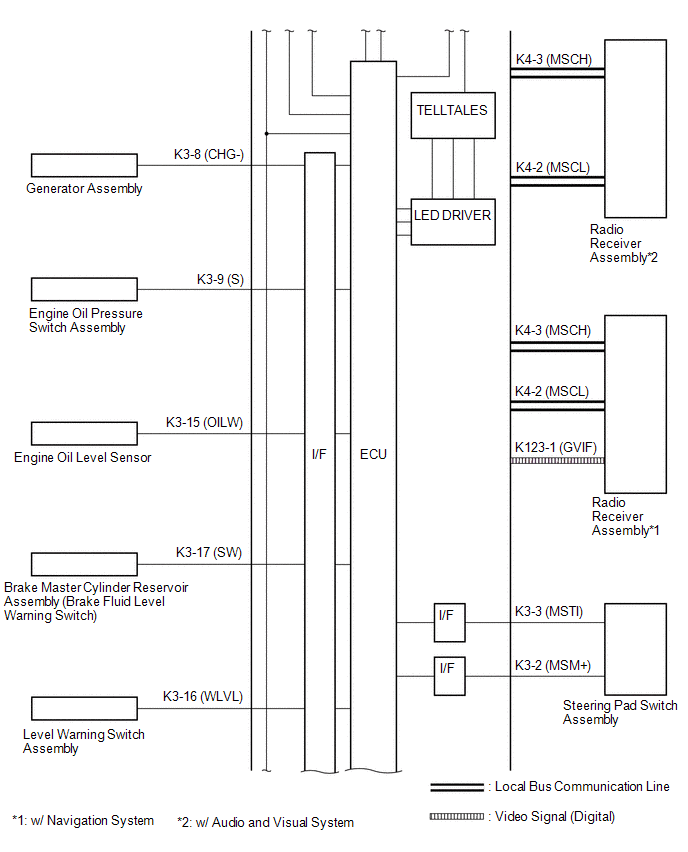

    Fig 2: Meter / Gauge System Diagram (2 Of 3)
    GTY468705Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

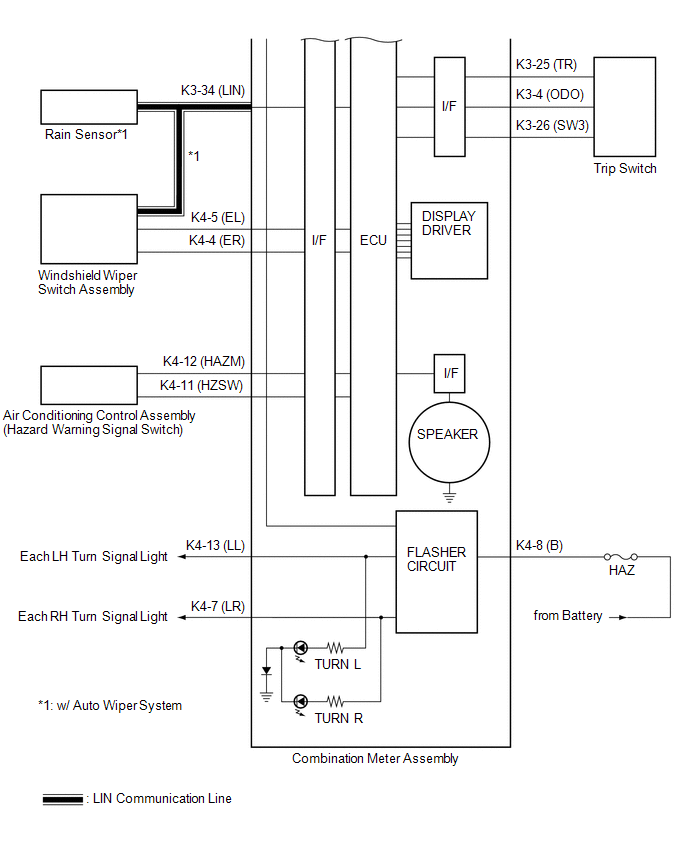

    Fig 3: Meter / Gauge System Diagram (3 Of 3)
    GTY470656Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
