Meter / Gauge / Display - Service Information
>>
Clock
>>
Components [09/2020 - ]
Components [09/2020 - ]

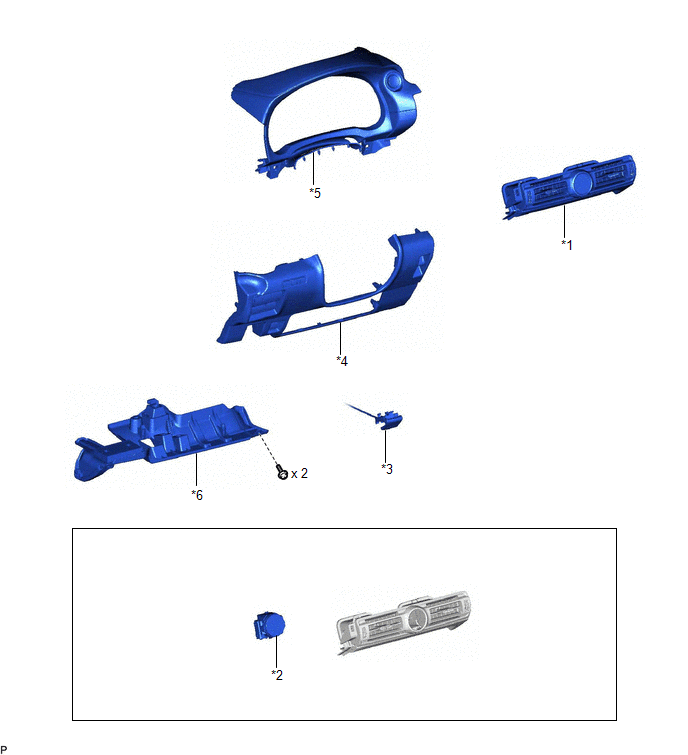

Fig 1: Clock Replacement Components [09/2020 - ]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1
CENTER INSTRUMENT PANEL REGISTER ASSEMBLY
*2
CLOCK ASSEMBLY
*3
HOOD LOCK CONTROL LEVER SUB-ASSEMBLY
*4
LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY
*5
METER HOOD SUB-ASSEMBLY
*6
NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
