Parts Location [08/2014 - ]: Illustration

Fig 1: Meter/Gauge System Components Location (1 Of 5)
GTY409232Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

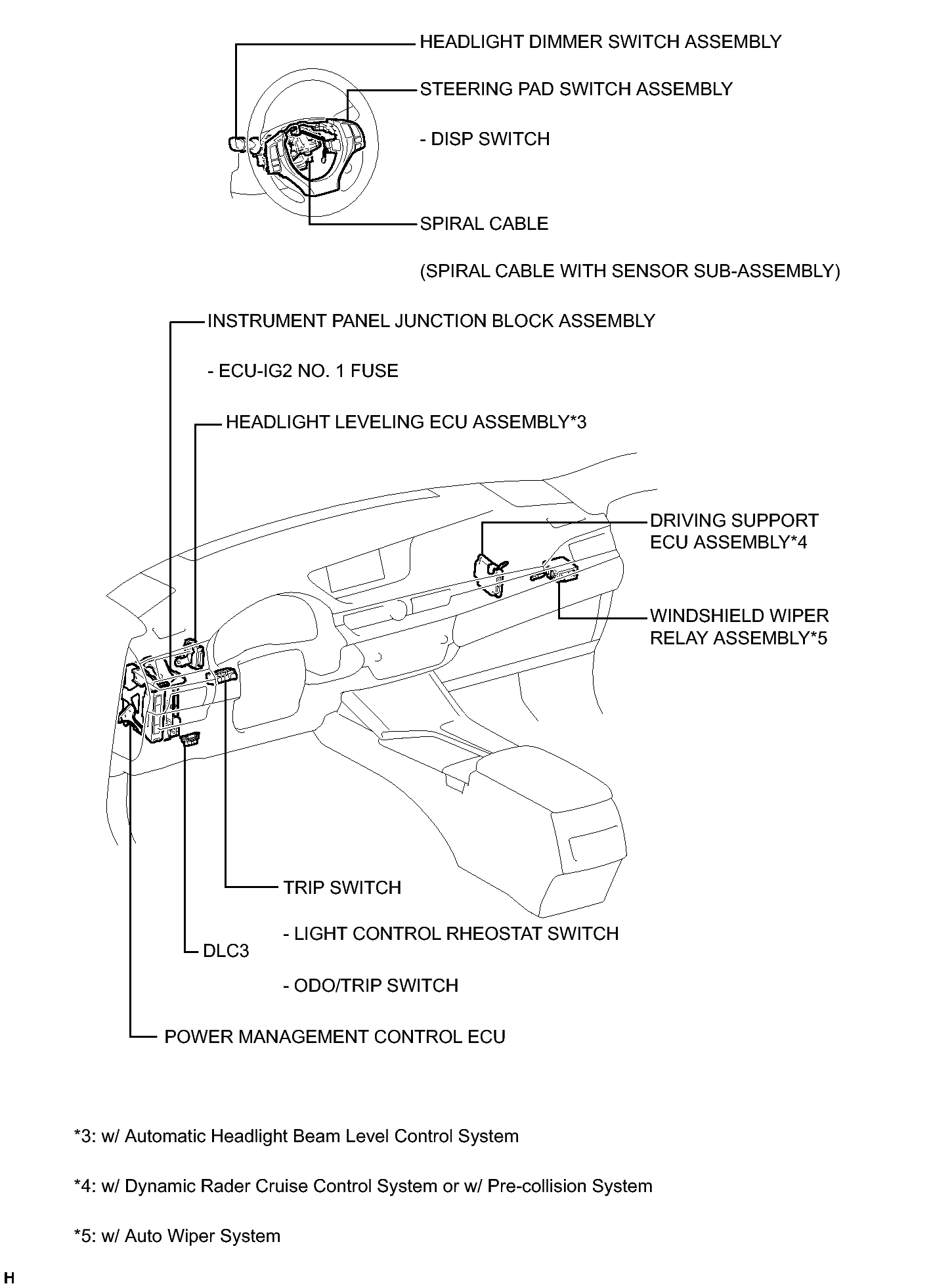

Fig 1: Meter/Gauge System Components Location (2 Of 5)
GTY507116Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Meter/Gauge System Components Location (3 Of 5)
GTY501949Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Meter/Gauge System Components Location (4 Of 5)
GTY407566Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Meter/Gauge System Components Location (5 Of 5)
GTY398089Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
