Speed Signal Circuit [08/2014 - ]: Wiring Diagram

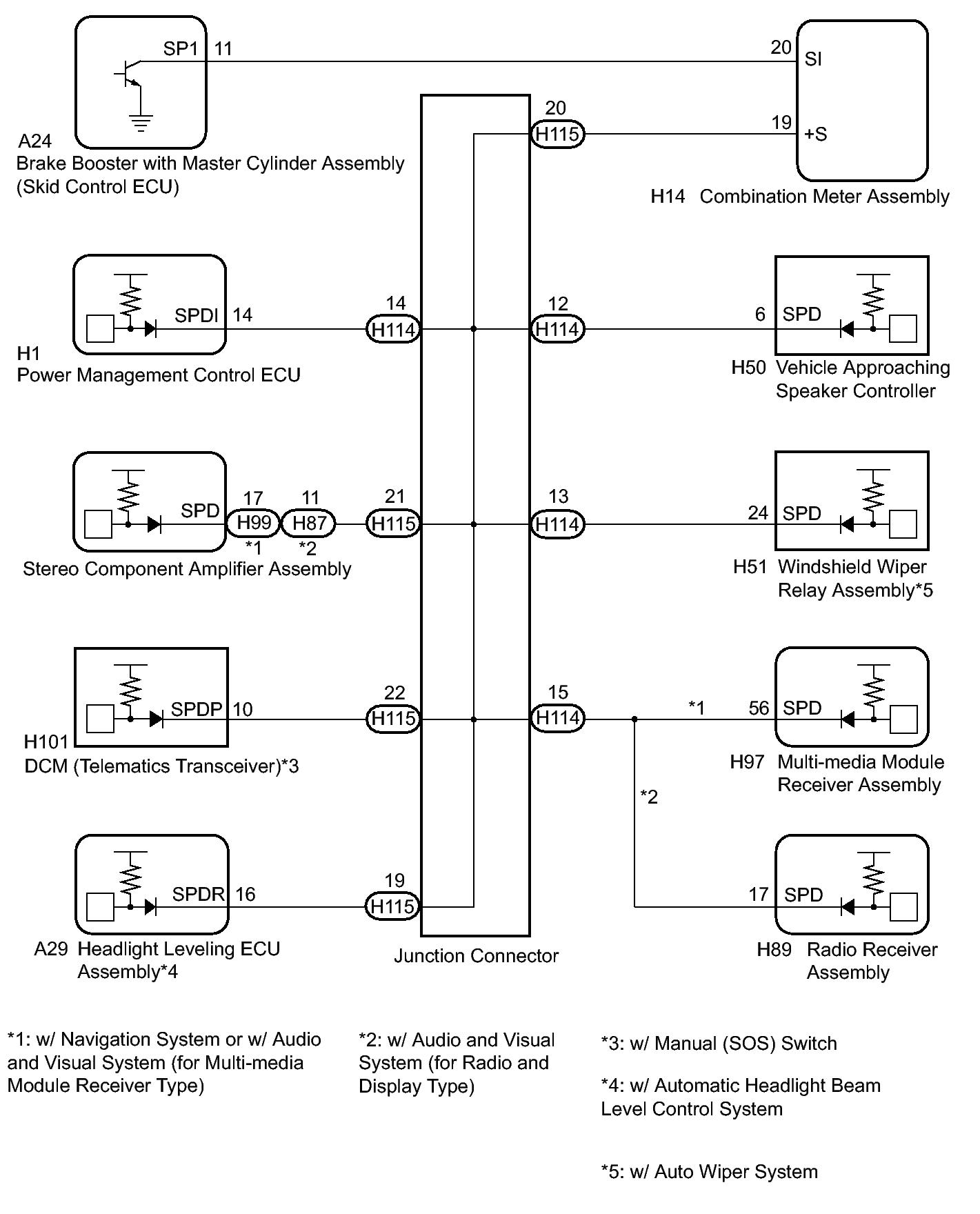

Fig 1: Vehicle Speed Signal Circuit Wiring Diagram

GTY516795

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
