Removal [09/2013 - ]

HINT:

• Use the same procedures for the LH side and RH side.
• The procedures listed below are for the LH side.

1. REMOVE NO. 1 SPEAKER HOLE COVER
   1. Detach the 4 clips, claw and clamp and remove the No. 1 speaker hole cover.
      Fig 1: Identifying No. 1 Speaker Hole Cover Claws

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. REMOVE FRONT NO. 3 SPEAKER ASSEMBLY
   NOTE:

   Do not touch the cone part of the speaker.

   1. Remove the 2 bolts.

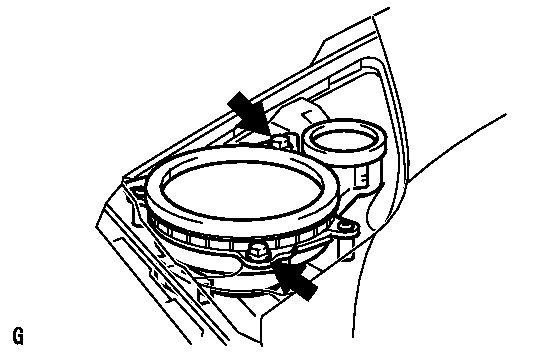

      Fig 2: Identifying Front No. 3 Speaker Assembly Bolts

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Disconnect the connector and remove the front No. 3 speaker assembly.
3. REMOVE FRONT PILLAR GARNISH LH  . Refer to REMOVAL [09/2013 - ] - Step 13
4. REMOVE NO. 1 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY
   1. Detach the 2 clips and 7 claws.
      Fig 3: Locating No. 1 Instrument Panel Speaker Panel Sub-Assembly Clips And Claws

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Remove the No. 1 instrument panel speaker panel sub-assembly.
5. REMOVE FRONT NO. 2 SPEAKER ASSEMBLY
   NOTE:

   Do not touch the cone part of the speaker.

   1. Remove the 2 bolts.
      Fig 4: Identifying Front No. 2 Speaker Assembly Bolts

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Disconnect the connector and remove the front No. 2 speaker assembly.
