Inspection [09/2020 - 11/2021]: Procedure

1. Inspect the tires for wear and proper inflation pressure.

   Cold Tire Inflation Pressure

   Tire Size	Tire Inflation Pressure
   	Front	Rear
   235/45R18	240 kPa (2.4 kgf/cm2 , 35 psi)	240 kPa (2.4 kgf/cm2 , 35 psi)
   235/40R19	240 kPa (2.4 kgf/cm2 , 35 psi)	250 kPa (2.5 kgf/cm2 , 36 psi)
   265/35R19	-	250 kPa (2.5 kgf/cm2 , 36 psi)

   Cold Tire Inflation Pressure (for Compact Spare Tire)

   Tire Size	Cold Tire Inflation Pressure
   T155/70D17 110M	420 kPa (4.2 kgf/cm2 , 60 psi)

   1. Perform initialization.

      Refer to INITIALIZATION [09/2020 - 10/2023]

   2. Tire pressure adjustment method when warm:
      1. Turn the engine switch off.
      2. Connect the Techstream to the DLC3.
      3. Turn the engine switch on (IG).
      4. Turn the Techstream on.
      5. Enter the following menus: Chassis / Tire Pressure Monitor / Data List.
      6. Adjust the tire pressure so that the displayed value is equal to the set pressure.
      7. Perform initialization and check that initialization completes.

         Refer to INITIALIZATION [09/2020 - 10/2023]

      8. Check and record the value of the Data List item "Temperature in Tire". (Ts)
      9. Check and record the ambient temperature during tire pressure adjustment. (Tm)
      10. Readjust the tire pressure according to the difference between the tire internal temperature (Ts) and the ambient temperature (Tm). (P)

          HINT:

          Tire internal temperature: Ts, Ambient temperature: Tm, Tire pressure readjustment value: P

          P = (Specified Pressure) + (Ts - Tm)

      11. Check the pressure adjustment value with the Data List item "Tire Inflation Pressure".
2. Using a dial indicator, check the runout of the tires.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Maximum Tire Runout

   1.0 mm (0.0393 in.)

   HINT:

   Measure the runout with the wheel assembly removed from the vehicle.

1. Remove the wheel assembly.

   Refer to REMOVAL [09/2020 - ]

2. When the size of the front and rear tires are the same, rotate the tires as shown in the illustration. When the size of the front and rear tires are not the same, do not rotate the tires.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Front

3. Install the wheel assembly.

   Refer to INSTALLATION [09/2020 - 10/2023]

4. Perform initialization.

   Refer to INITIALIZATION [09/2020 - 10/2023]

1. Inspect and adjust the off-the-car balance.

   Maximum Wheel Imbalance

   8.0 g (0.0176 lb)

   NOTE:

   • Use a cleaning detergent to remove dirt, oil and water from the surface where the balance weight is to be adhered.
   • Do not touch the adhesive surface of the balance weight.

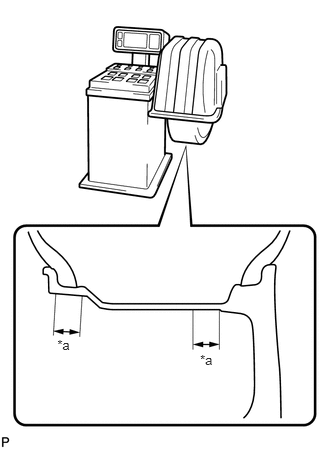

   • Adhere a stick-on type balance weight to the flat surface*a shown in the illustration.
   • Push the balance weight with your finger to securely adhere it to the desired position.
   • Do not reuse balance weights.
   • Use only LEXUS genuine stick-on type balance weights or equivalent.

   HINT:

   • Use stick-on type balance weights for both the inner and outer side.
   • If the tires vibrate even after the off-the-car balance adjustment, adjust the wheel balance with on-the-car balancing as necessary.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	25 mm (0.984 in.)

Refer to ON-VEHICLE INSPECTION [09/2020 - ]

Refer to ON-VEHICLE INSPECTION [09/2020 - ]
