Removal [04/2013 - ]: Procedure

REMOVE REAR SUSPENSION MEMBER SUB-ASSEMBLY
Refer to REMOVAL [04/2013 - 08/2015] , or refer to REMOVAL [08/2015 - 10/2016] , or refer to REMOVAL [10/2016 - 10/2017] , or refer to REMOVAL [10/2017 - 09/2020] , or refer to REMOVAL [09/2020 - 11/2021] , or refer to REMOVAL [11/2021 - ]

REMOVE REAR NO. 1 UPPER CONTROL ARM ASSEMBLY

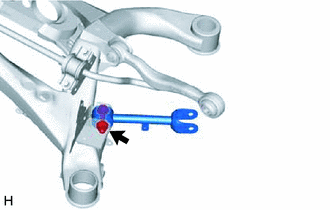

Remove the bolt, nut, washer and rear No. 1 upper control arm assembly from the rear suspension member sub-assembly.

NOTE:

Because the bolt has its own stopper, do not turn the bolt. Loosen the nut with the bolt secured.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE REAR UPPER CONTROL ARM ASSEMBLY

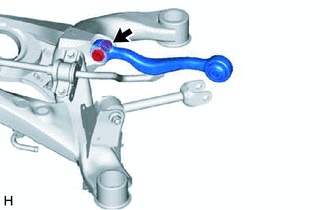

Remove the bolt, nut, washer and rear upper control arm assembly from the rear suspension member sub-assembly.

NOTE:

Because the bolt has its own stopper, do not turn the bolt. Loosen the nut with the bolt secured.
