Removal [10/2016 - 10/2017]: Procedure

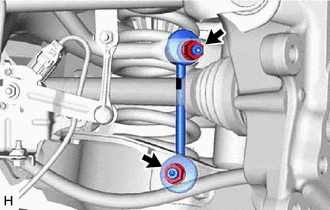

1. Remove the 2 nuts and rear stabilizer link assembly LH.

   HINT:

   If the ball joint turns together with the nut, use a 6 mm hexagon socket wrench to hold the stud bolt.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Perform the same procedure as for the LH side.

Refer to REMOVAL [10/2016 - 10/2017]

1. Remove the 4 bolts, rear stabilizer bar sub-assembly and 2 rear No. 1 stabilizer bar brackets from the rear suspension member sub-assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Remove the 2 rear No. 1 stabilizer bar brackets from the 2 rear stabilizer bushings.
3. Remove the 2 rear stabilizer bushings from the rear stabilizer bar.
