Removal [04/2013 - 10/2016]: Procedure

1. Remove the 2 nuts and rear stabilizer link assembly LH.

   HINT:

   If the ball joint turns together with the nut, use a 6 mm hexagon socket wrench to hold the stud bolt.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Perform the same procedure as for the LH side.

Refer to REMOVAL [04/2013 - 08/2015] , or refer to REMOVAL [08/2015 - 10/2016]

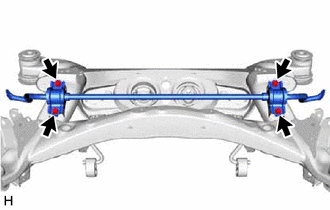

1. Remove the 4 bolts, rear stabilizer bar, 2 rear No. 1 stabilizer bar brackets and 2 rear stabilizer bushings from the rear suspension member sub-assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the 2 rear No. 1 stabilizer bar brackets from the 2 rear stabilizer bushings.

1. Remove the 2 rear stabilizer bushings from the rear stabilizer bar.
