Removal [06/2014 - 09/2020]: Procedure

  1. REMOVE REAR WHEEL
  2. SEPARATE REAR HEIGHT CONTROL SENSOR SUB-ASSEMBLY

    See step  2

  3. SEPARATE TOE CONTROL LINK SUB-ASSEMBLY

    See step  3

  4. REMOVE REAR NO. 1 SUSPENSION ARM ASSEMBLY
    1. Remove the bolt and nut, and separate the rear No. 1 suspension arm assembly from the rear axle assembly.
      NOTE:

      Because the nut has its own stopper, do not turn the nut. Loosen the bolt with the nut secured.

      GTY461150Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

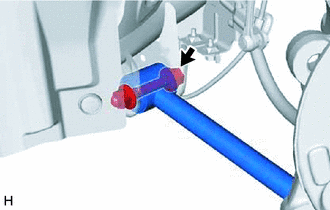

    2. Remove the bolt and nut, and remove the rear No. 1 suspension arm assembly from the rear suspension member sub-assembly.
      NOTE:

      Because the nut has its own stopper, do not turn the nut. Loosen the bolt with the nut secured.

      GTY460325Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE REAR SUSPENSION MEMBER BRACE

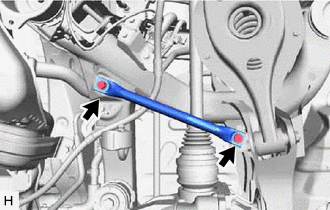

    1. Remove the 2 bolts and rear suspension member brace from the rear suspension member sub-assembly.
      GTY461157Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE REAR STABILIZER LINK ASSEMBLY

    See step  2 [04/2013 - 10/2016], or see step  2 [10/2016 - 10/2017], or see step  2 [10/2017 - 09/2020]

  7. SEPARATE REAR SHOCK ABSORBER ASSEMBLY

    See step  6

  8. REMOVE REAR COIL SPRING

    See step  7

  9. REMOVE REAR UPPER COIL SPRING INSULATOR

    See step  8

  10. REMOVE REAR LOWER COIL SPRING INSULATOR

    See step  9

  11. REMOVE REAR NO. 2 SUSPENSION ARM ASSEMBLY

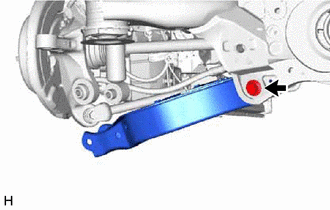

    1. Remove the bolt, nut and rear No. 2 suspension arm assembly from the rear suspension member sub-assembly.
      NOTE:

      Because the nut has its own stopper, do not turn the nut. Loosen the bolt with the nut secured.

      GTY507265Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
