Removal [09/2020 - ]: Procedure

  1. PRECAUTION
    NOTE:

    After turning the engine switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.

    Refer to PRECAUTION [09/2020 - ]

  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Refer to INITIALIZATION [09/2020 - 11/2021] , or refer to INITIALIZATION [11/2021 - 09/2022] , or refer to INITIALIZATION [09/2022 - 10/2023] , or refer to INITIALIZATION [10/2023 - ]

  3. REMOVE LUGGAGE COMPARTMENT FLOOR MAT

    Refer to PROCEDURE - Step 4

  4. REMOVE SPARE WHEEL COVER TRAY LH

    Refer to PROCEDURE - Step 5

  5. REMOVE SPARE WHEEL COVER TRAY RH

    Refer to PROCEDURE - Step 6

  6. REMOVE DECK SIDE TRIM BOX LH

    Refer to PROCEDURE - Step 7

  7. REMOVE DECK SIDE TRIM BOX RH

    Refer to PROCEDURE - Step 8

  8. REMOVE LUGGAGE COMPARTMENT DOOR STRIKER COVER

    Refer to PROCEDURE - Step 9

  9. REMOVE REAR LUGGAGE COMPARTMENT TRIM COVER

    Refer to PROCEDURE - Step 10

  10. REMOVE FRONT LUGGAGE COMPARTMENT TRIM COVER

    Refer to PROCEDURE - Step 11

  11. REMOVE NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 1

  12. REMOVE FRONT UPPER LUGGAGE COMPARTMENT TRIM COVER

    Refer to PROCEDURE - Step 17

  13. SEPARATE LUGGAGE COMPARTMENT TRIM COVER LH (for LH Side)
    1. Disengage the 2 claws and open the cover.
      GTY465291Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and rope hook assembly.
      GTY456525Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

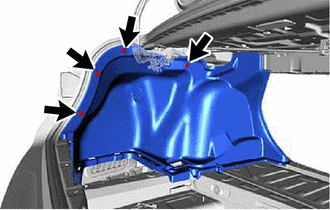

    3. Remove the 4 clips.
      GTY969610Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Separate the luggage compartment trim cover LH from the body.
  14. SEPARATE LUGGAGE COMPARTMENT TRIM COVER RH (for RH Side)

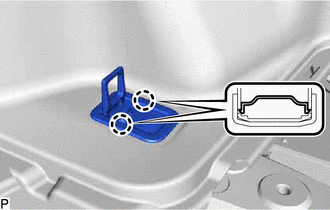

    1. Disengage the 2 claws and open the cover.
      GTY465289Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

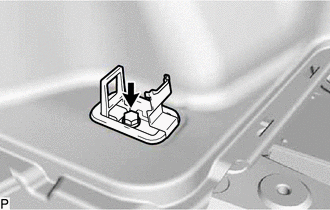

    2. Remove the bolt and rope hook assembly.
      GTY465292Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

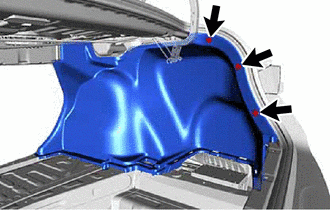

    3. Remove the 3 clips.
      GTY969609Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Separate the luggage compartment trim cover RH from the body.
  15. REMOVE ABSORBER CONTROL ACTUATOR
    1. Turn back the luggage compartment trim cover until the absorber control actuator can be seen.
    2. Disconnect the connector.
      GTY469221Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a 40°
    3. Turn the absorber control actuator counterclockwise 40° to remove it from the rear actuator support bracket.
      NOTE:
      • Do not turn the absorber control actuator more than 40°.
      • Do not drop the absorber control actuator. If it is dropped, replace it with a new one.
