Removal [04/2013 - 08/2015]: Procedure
- PRECAUTION NOTE:
After turning the engine switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.
Refer to PRECAUTION [04/2013 - 08/2015]
- DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected.
Refer to INITIALIZATION [04/2013 - 06/2014] , or refer to INITIALIZATION [06/2014 - 08/2015]
- REMOVE LUGGAGE COMPARTMENT FLOOR MAT
Refer to PROCEDURE - Step 4
- REMOVE SPARE WHEEL COVER TRAY LH
Refer to PROCEDURE - Step 5
- REMOVE SPARE WHEEL COVER TRAY RH
Refer to PROCEDURE - Step 6
- REMOVE DECK SIDE TRIM BOX LH
Refer to PROCEDURE - Step 7
- REMOVE DECK SIDE TRIM BOX RH
Refer to PROCEDURE - Step 8
- REMOVE REAR LUGGAGE COMPARTMENT TRIM COVER
Refer to PROCEDURE - Step 9
- REMOVE FRONT LUGGAGE COMPARTMENT TRIM COVER (for Fixed Seat Type)
Refer to PROCEDURE - Step 10
- REMOVE FRONT LUGGAGE COMPARTMENT TRIM COVER (for Fold Down Seat Type)
Refer to PROCEDURE - Step 11
- SEPARATE LUGGAGE COMPARTMENT TRIM COVER
Refer to PROCEDURE - Step 11
- REMOVE ABSORBER CONTROL ACTUATOR
- Turn back the luggage compartment trim cover until the absorber control actuator can be seen.
- Disconnect the connector.

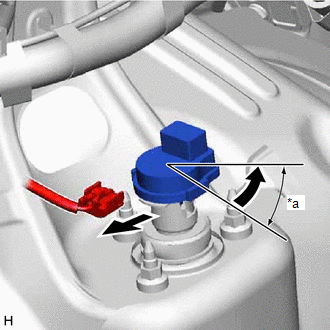

*a 40° - Turn the absorber control actuator counterclockwise 40° to remove it from the rear actuator support bracket.NOTE:
- Do not turn the absorber control actuator more than 40°.
- Do not drop the absorber control actuator. If it is dropped, replace it with a new one.
