Removal [10/2016 - 11/2021]: Procedure

Refer to REMOVAL [04/2013 - ]

1. Disconnect 2 connectors from the spiral cable with sensor sub-assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Disconnect the connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

3. Remove the steering wheel assembly set nut.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Matchmark

4. Put matchmarks on the steering wheel assembly and steering main shaft.

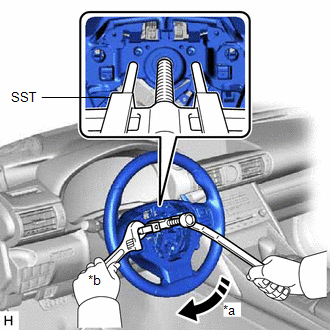

5. Using SST, remove the steering wheel assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Turn
   *b	Hold

   • SST: 09950-50013
     1. 09951-05010
     2. 09952-05010
     3. 09953-05020
     4. 09954-05070
   NOTE:

   Apply a small amount of grease to the threads and tip of SST (09953-05020) before use.

Refer to PROCEDURE - Step 2

See step  3

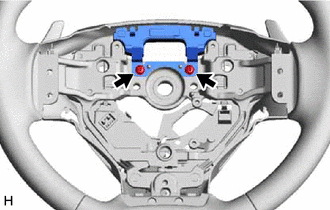

1. Remove the 2 screws and steering shake damper from the steering wheel sub-assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

for A760H: Refer to PROCEDURE - Step 4

for AA81E: Refer to PROCEDURE - Step 4

HINT:

Use the same procedure as for the steering vibration and heater ECU.

See step  5

See step  5
