Removal [09/2020 - ]: Procedure

  1. REMOVE REAR SEAT ASSEMBLY

    Refer to REMOVAL [09/2020 - ]

  2. REMOVE REAR DOOR SCUFF PLATE LH

    Refer to PROCEDURE - Step 10

  3. REMOVE REAR DOOR SCUFF PLATE RH

    HINT:

    Use the same procedure as for the LH side.

  4. REMOVE REAR SEAT SIDE GARNISH LH

    Refer to PROCEDURE - Step 19

  5. REMOVE REAR SEAT SIDE GARNISH RH

    HINT:

    Use the same procedure as for the LH side.

  6. REMOVE INNER ROOF SIDE GARNISH ASSEMBLY LH

    Refer to PROCEDURE - Step 20

  7. REMOVE INNER ROOF SIDE GARNISH ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

  8. REMOVE LUGGAGE COMPARTMENT FLOOR MAT

    Refer to PROCEDURE - Step 4

  9. REMOVE FRONT LUGGAGE COMPARTMENT TRIM COVER

    Refer to PROCEDURE - Step 11

  10. REMOVE REAR SEAT SUB FLOOR PANEL
    1. Disengage the 3 clips to remove the rear seat sub floor panel.

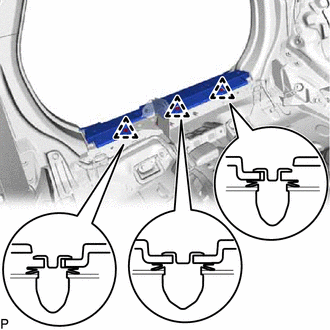

      GTY465275Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE NO. 2 ROOM PARTITION COVER
    1. Remove the clip.

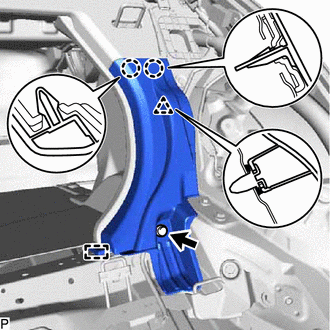

      GTY457055Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 claws and clip.
    3. Disengage the guide to remove the No. 2 room partition cover.
  12. REMOVE NO. 1 ROOM PARTITION COVER

    HINT:

    Use the same procedure as for the No. 2 room partition cover.

  13. REMOVE NO. 3 ROOM PARTITION COVER
    1. Disengage the 5 clips and remove the No. 3 room partition cover.

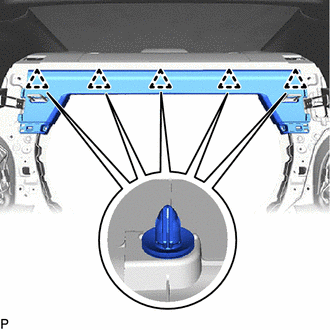

      GTY966748Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. DISCONNECT REAR SEAT 3 POINT TYPE OUTER BELT ASSEMBLY LH
    1. Remove the bolt to disconnect the floor anchor of the rear seat 3 point type outer belt assembly LH.

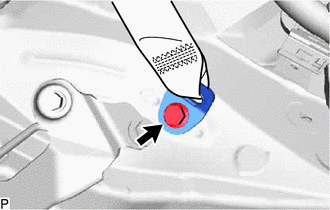

      GTY457056Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. DISCONNECT REAR SEAT 3 POINT TYPE OUTER BELT ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

  16. REMOVE REAR SEAT SHOULDER BELT HOLE COVER

    HINT:

    Use the same procedure for all rear seat shoulder belt hole covers.

    1. Using a moulding remover, disengage the 2 claws and 2 guides to remove the rear seat shoulder belt hole cover.

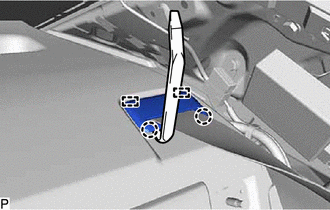

      GTY967458Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. REMOVE CENTER STOP LIGHT ASSEMBLY WITH COVER (w/o Rear Sunshade)

    Refer to PROCEDURE - Step 1

  18. REMOVE PACKAGE TRAY TRIM PANEL ASSEMBLY (w/o Rear Sunshade)
    1. Using a clip remover, remove the 4 clips.

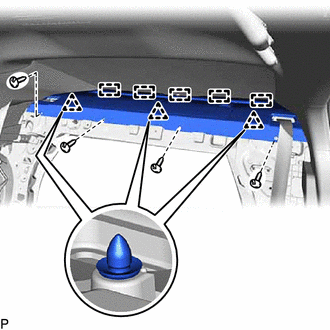

      GTY967787Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 3 clips and 5 guides.
    3. Pass the 2 rear seat belt floor anchors through the holes of the package tray trim panel assembly then remove the package tray trim panel assembly.
  19. REMOVE PACKAGE TRAY TRIM PANEL ASSEMBLY (w/ Rear Sunshade)
    1. Using a clip remover, remove the 4 clips.

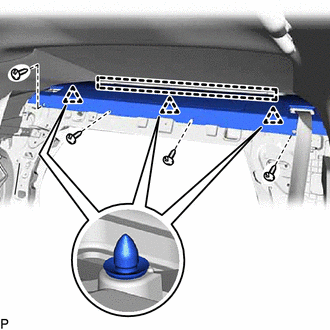

      GTY966464Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 3 clips and guide.
    3. Pass the 2 rear seat belt floor anchors through the holes of the package tray trim panel assembly then remove the package tray trim panel assembly.
  20. REMOVE REAR SEAT 3 POINT TYPE OUTER BELT ASSEMBLY
    1. Using a screwdriver, pull out the locking button as shown in the illustration to release the lock and disconnect the pretensioner connector as shown in the illustration.

      HINT:

      Tape the screwdriver tip before use.

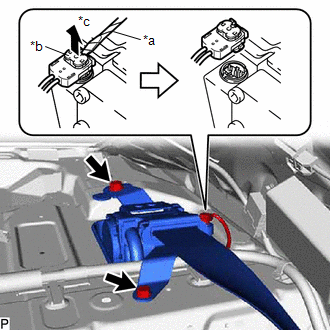

      GTY966790Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
      *b Locking Button
      *c Release
    2. Remove the 2 bolts and rear seat 3 point type outer belt assembly.
