Installation [09/2020 - ]: Procedure

  1. INSPECT SPIRAL CABLE SUB-ASSEMBLY
    NOTE:

    If the steering sensor is installed to a misaligned spiral cable sub-assembly, spiral cable with sensor sub-assembly malfunction DTCs will be stored and it will be impossible to clear them. If this happens, replace the spiral cable with sensor sub-assembly with a new one.

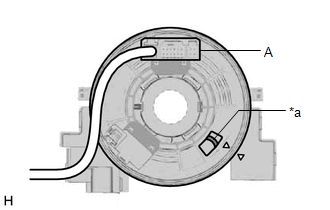

    1. Check if the spiral cable sub-assembly is centered.
      GTY648390Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Flat Cable

      HINT:

      When the spiral cable sub-assembly is centered, the part indicated by (A) is positioned at the top and the flat cable shown in the illustration can be seen.

    2. If the spiral cable sub-assembly is not centered, center it.

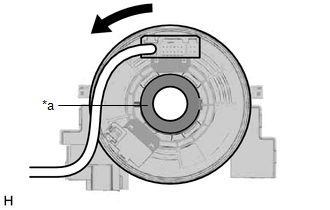

      1. While pushing on the interlock shown in the illustration, rotate the spiral cable sub-assembly counterclockwise slowly by hand until it stops.
        GTY643485Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Interlock
        NOTE:
        • When rotating the spiral cable sub-assembly, make sure to push on the interlock shown in the illustration to release the interlock mechanism.
        • Do not turn the spiral cable sub-assembly using the airbag wire harness.
        • If the spiral cable sub-assembly cannot be centered, it is possible that the spiral cable sub-assembly is broken. Replace the spiral cable sub-assembly or spiral cable with sensor sub-assembly with a new one.

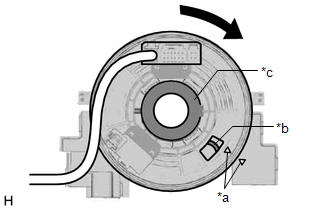

      2. While pushing on the interlock shown in the illustration, rotate the spiral cable sub-assembly clockwise approximately 2.5 times to the position where the alignment marks are aligned and the flat cable shown in the illustration can be seen.
        GTY673756Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Alignment Mark
        *b Flat Cable
        *c Interlock

        HINT:

        The spiral cable sub-assembly can be rotated approximately 2.5 turns to both the left and right from the center.

  2. INSTALL SPIRAL CABLE SUB-ASSEMBLY

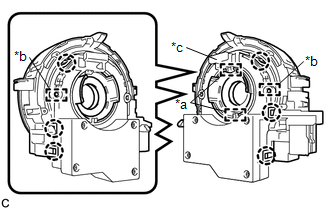

    1. Align the 2 pins and 2 guides, and engage the 6 claws to install the spiral cable sub-assembly to the steering sensor.
      GTY492551Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Guide
      *b Pin
      *c Lock Pin
      NOTE:
      • Do not remove the lock pin before the spiral cable sub-assembly is installed to the steering sensor.
      • Do not damage the pins of the spiral cable sub-assembly and guides of the steering sensor.
      • The spiral cable sub-assembly can be rotated up to 30° even when the interlock is engaged. Therefore, make sure that both guides are aligned properly when installing the spiral cable sub-assembly to the steering sensor.
    2. Remove the lock pin from the steering sensor.
      GTY375894Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY
    NOTE:
    • Do not replace the spiral cable with sensor sub-assembly with the battery connected and the engine switch on (IG).
    • Do not rotate the spiral cable with sensor sub-assembly without the steering wheel assembly with the battery connected and the engine switch on (IG).
    • Ensure that the steering wheel assembly is installed and aligned straight when inspecting the steering sensor.
    1. Check that the engine switch is off.
    2. Check that the cable is disconnected from the negative (-) battery terminal.
      WARNING:

      Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

    3. Check that the front wheels are facing straight ahead.
    4. Engage the 3 claws to install the spiral cable with sensor sub-assembly.
    5. Connect each connector.
  4. INSTALL STEERING COLUMN COVER

    Refer to PROCEDURE - Step 10 [09/2020 - 11/2021] , or refer to PROCEDURE - Step 11 [11/2021 - ]

  5. ALIGN FRONT WHEELS FACING STRAIGHT AHEAD
  6. INSPECT AND ADJUST SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY
    NOTE:

    Do not adjust the spiral cable with sensor sub-assembly with the battery connected and the engine switch on (IG).

    1. Check that the engine switch is off.
    2. Check that the cable is disconnected from the negative (-) battery terminal.
      WARNING:

      Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

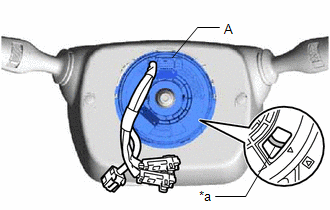

    3. Check if the spiral cable with sensor sub-assembly is centered.
      GTY639896Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Flat Cable

      HINT:

      When the spiral cable with sensor sub-assembly is centered, the part indicated by (A) is positioned at the top and the flat cable shown in the illustration is visible.

    4. If the spiral cable with sensor sub-assembly is not centered, center it.
      NOTE:
      • When rotating the spiral cable with sensor sub-assembly, make sure to push on the interlock indicated in the illustration to release the interlock mechanism.
      • Do not turn the spiral cable with sensor sub-assembly using the airbag wire harness.

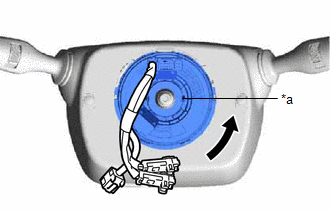

      1. While pushing on the interlock indicated in the illustration, rotate the spiral cable with sensor sub-assembly counterclockwise slowly by hand until it stops.
        GTY670612Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Interlock

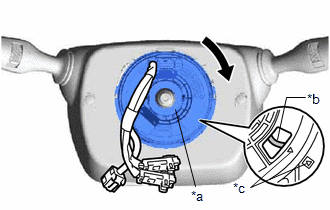

      2. While pushing on the interlock indicated in the illustration, rotate the spiral cable with sensor sub-assembly clockwise approximately 2.5 times to the position where the alignment marks are aligned and the flat cable shown in the illustration is visible.
        GTY664740Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Interlock
        *b Flat Cable
        *c Alignment Mark

        HINT:

        The spiral cable with sensor sub-assembly will rotate approximately 2.5 times to both the left and right from the center.

  7. INSTALL STEERING WHEEL ASSEMBLY

    Refer to PROCEDURE - Step 13 [09/2020 - 11/2021] , or refer to PROCEDURE - Step 14 [11/2021 - ]

  8. PERFORM INITIALIZATION AND CALIBRATION
    w/ Parking Assist Monitor System Refer to CALIBRATION [09/2020 - ]
    w/ Panoramic View Monitor System for Calibration: Refer to CALIBRATION [09/2020 - ]
    for Initialization: Refer to INITIALIZATION [09/2020 - ]
    w/ Parking Support Brake System Refer to CALIBRATION [09/2020 - 11/2021] , or refer to CALIBRATION [11/2021 - ]
