Removal [09/2020 - ]: Procedure
WARNING: This page is about a different variant/trim than selected.
- REMOVE FRONT EXHAUST PIPE ASSEMBLY (for 2GR-FKS)
Refer to REMOVAL [09/2020 - ]
- REMOVE FRONT EXHAUST PIPE ASSEMBLY (for 8AR-FTS)
Refer to REMOVAL [09/2020 - ]
- REMOVE FRONT NO. 1 FLOOR HEAT INSULATOR
Refer to PROCEDURE - Step 3
- SEPARATE FLOOR SHIFT GEAR SHIFTING ROD SUB-ASSEMBLY
- Move the shift lever to N.
- Remove the nut and separate the floor shift gear shifting rod sub-assembly from the lever of the transmission floor shift assembly.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- REMOVE CONSOLE BOX ASSEMBLY
Refer to REMOVAL [09/2020 - 11/2021]
, or refer to REMOVAL [11/2021 - ]
- REMOVE NO. 1 CONSOLE BOX DUCT

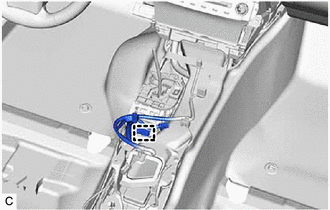

- Disengage the clamp from the No. 1 console box duct.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

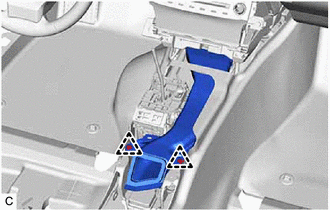

- Remove the 2 clips and No. 1 console box duct.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- REMOVE TRANSMISSION FLOOR SHIFT ASSEMBLY
- Disconnect the shift lock control ECU connector.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- Disengage the 4 clamps from the transmission floor shift assembly.
- Disconnect the transmission control switch connector.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- Remove the 4 bolts and transmission floor shift assembly from the vehicle body.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
