Removal [04/2013 - 08/2015]: Procedure

WARNING: This page is about a different car, the 2015 Lexus IS 250 and 2014 Lexus IS 250. However, it is still accessible from the selected car via links, so may be relevant.
  1. DRAIN ENGINE OIL

    See step  1

  2. REMOVE FRONT SUSPENSION MEMBER BRACE (w/ No. 2 Engine Under Cover)

    Refer to PROCEDURE - Step 13

  3. REMOVE NO. 2 ENGINE UNDER COVER (w/ No. 2 Engine Under Cover)

    Refer to PROCEDURE - Step 14

  4. REMOVE ENGINE OIL LEVEL SENSOR
    1. Disconnect the engine oil level sensor connector.

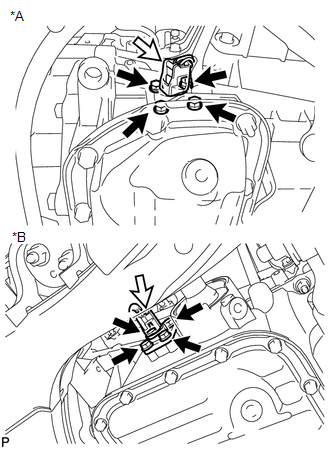

      GTY462986Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A for 2WD
      *B for AWD
    2. Remove the 4 bolts and engine oil level sensor.
    3. Cut off the gasket as shown in the illustration.
      GTY466027Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Cutting Position
      *2 Supply Part
    4. Remove the gasket from the engine oil level sensor.

      HINT:

      After cutting away the parts of the gasket shown in the illustration, remove only the outer part of the gasket.
