Installation [04/2013 - 08/2015]: Procedure

WARNING: This page is about a different car, the 2015 Lexus IS 250 and 2014 Lexus IS 250. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL INJECTOR DRIVER
    NOTE:
    • Be careful not to drop or strike the injector driver.
    • The injector driver is grounded at the bolt and nut. To ensure that it is grounded, clean the installation surfaces of the injector driver and engine before installing the injector driver.
    1. Install the injector driver to the timing chain cover sub-assembly with the bolt and 2 nuts.

      Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

    2. Connect the injector driver connector.

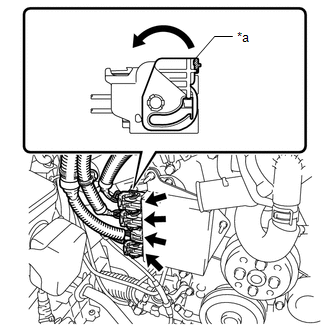

      GTY460752Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Lock Lever
    3. Connect the 3 connectors (with lock) to the injector driver and move each lock lever as shown in the illustration to engage the lock.
      NOTE:

      Securely connect the connectors (with lock) to the injector driver and engage the lock levers.

  2. INSTALL NO. 1 ENGINE COVER
    1. Install the No. 1 engine cover to the timing chain cover sub-assembly with the 3 clips.
  3. INSTALL INLET NO. 1 AIR CLEANER

    Refer to PROCEDURE - Step 74

  4. INSTALL V-BANK COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 104

  5. INSTALL COOL AIR INTAKE DUCT SEAL

    Refer to PROCEDURE - Step 3

  6. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Refer to INITIALIZATION [04/2013 - 06/2014] , or refer to INITIALIZATION [06/2014 - 08/2015]
