Installation [04/2013 - 08/2015]: Procedure

WARNING: This page is about a different car, the 2015 Lexus IS 250 and 2014 Lexus IS 250. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL FUEL PRESSURE PULSATION DAMPER ASSEMBLY
    1. Apply a light coat of engine oil to the threads and gasket seating surface of the fuel pressure pulsation damper assembly.
    2. Install 2 new gaskets, the fuel tube sub-assembly and fuel pressure pulsation damper assembly to the fuel pump assembly.
      GTY464969Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Gasket
      *2 Fuel Pressure Pulsation Damper Assembly
      *3 Fuel Tube Sub-assembly
    3. Using SST, tighten the fuel pressure pulsation damper assembly to the fuel pump assembly.

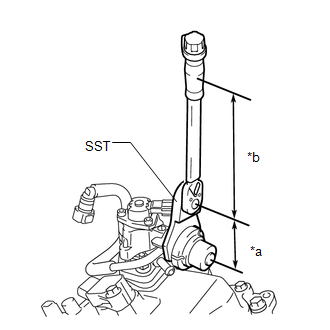

      GTY462615Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Length of SST 52 mm (2.05 in.)
      *b Length of Torque Wrench 180 mm (7.09 in.)
      • SST: 09612-24014
        1. 09617-24011

      without SST [Torque (N.m (kgf/cm, ft.lbf))]

      Torque: 40 N.m (408 kgf/cm, 30 ft.lbf)

      with SST [Reading of Torque wrench (N.m (kgf/cm, ft.lbf))]

      Torque: 31 N.m (316 kgf/cm, 23 ft.lbf)

      HINT:

      • This torque value is effective when SST is parallel to the torque wrench.
      • The "with SST" torque value is effective when using SST with a fulcrum length of 52 mm (2.05 in.).
      • The "with SST" torque value is effective when using a torque wrench with a fulcrum length of 180 mm (7.09 in.).
      • If using a torque wrench with a different length, or connecting the torque wrench and SST at an angle, refer to the alternate torque values.

        Refer to PRECAUTION [04/2013 - 08/2015]

  2. INSTALL AIR CLEANER CAP WITH AIR CLEANER HOSE

    Refer to PROCEDURE - Step 3

  3. CONNECT NO. 2 VENTILATION HOSE

    Refer to PROCEDURE - Step 4

  4. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Refer to INITIALIZATION [04/2013 - 06/2014] , or refer to INITIALIZATION [06/2014 - 08/2015]

  5. INSPECT FOR FUEL LEAK

    Refer to PROCEDURE - Step 1

  6. INSTALL V-BANK COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 104
