Installation [10/2016 - ]: Procedure
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2024 Lexus IS 300, 2023 Lexus IS 300, 2022 Lexus IS 300, 2021 Lexus IS 300, and 2020 Lexus IS 300. However, it is still accessible from the selected car via links, so may be relevant.
- INSTALL STARTER ASSEMBLY

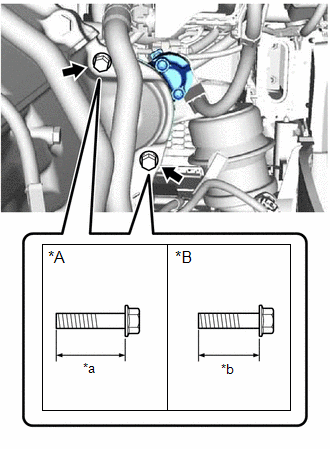

- Install the starter assembly with the 2 bolts.
*A Type A *B Type B *a 45 mm (1.77 in.) *b 40 mm (1.57 in.) Type A
Torque: 37 N.m (377 kgf/cm, 27 ft.lbf)
Type B
Torque: 46 N.m (469 kgf/cm, 34 ft.lbf)
- Connect terminal 30 with the nut.
Torque: 9.8 N.m (100 kgf/cm, 87 in.lbf)
- Close the terminal cap.
- Connect the starter assembly connector.
- Install the starter assembly with the 2 bolts.
- INSTALL FRONT SUSPENSION MEMBER BRACE
Refer to PROCEDURE - Step 77 [10/2016 - 09/2020] , or refer to PROCEDURE - Step 77 [09/2020 - ]
- INSTALL ENGINE UNDER COVER
Refer to PROCEDURE - Step 78 [10/2016 - 09/2020] , or refer to PROCEDURE - Step 78 [09/2020 - ]
- CONNECT CABLE TO NEGATIVE BATTERY TERMINAL NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected.
Refer to INITIALIZATION [10/2016 - 10/2017] , or refer to INITIALIZATION [10/2017 - 09/2020] , or refer to INITIALIZATION [09/2020 - 11/2021] , or refer to INITIALIZATION [11/2021 - 09/2022] , or refer to INITIALIZATION [09/2022 - 10/2023] , or refer to INITIALIZATION [10/2023 - ]
