Removal [11/2021 - ]: Procedure
WARNING: This page is about a different car, the 2024 Lexus IS 500, 2023 Lexus IS 500, and 2022 Lexus IS 500. However, it is still accessible from the selected car via links, so may be relevant.
- REMOVE SHIFT LEVER CAP

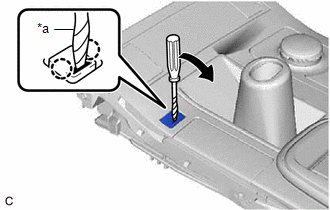

- Using a screwdriver, disengage the 2 claws as shown in the illustration and remove the shift lever cap from the shift position indicator.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
NOTE:
Do not damage the shift lever cap and shift position indicator.
HINT:
Tape the screwdriver tip before use.
- REMOVE FRONT EXHAUST PIPE ASSEMBLY (TWC: Rear Catalyst)
Refer to REMOVAL [11/2021 - ]
- REMOVE FRONT NO. 1 FLOOR HEAT INSULATOR
Refer to PROCEDURE - Step 3
- DISCONNECT FLOOR SHIFT GEAR SHIFTING ROD SUB-ASSEMBLY
- Move the shift lever to N.

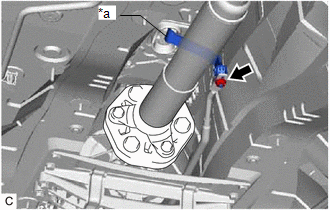

- Remove the nut and disconnect the floor shift gear shifting rod sub-assembly from the lever of the transmission floor shift assembly.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- REMOVE CONSOLE BOX ASSEMBLY
Refer to REMOVAL [11/2021 - ]
- REMOVE NO. 1 CONSOLE BOX DUCT
- Disengage the clamp to disconnect the wire harness from the No. 1 console box duct.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- Remove the 2 clips and No. 1 console box duct.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- REMOVE TRANSMISSION FLOOR SHIFT ASSEMBLY
- Disconnect the shift lock control ECU connector.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- Disengage the 4 clamps to disconnect the wire harness from the transmission floor shift assembly.
- Disconnect the transmission control switch connector.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- Remove the 4 bolts and transmission floor shift assembly from the vehicle body.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
