Removal [11/2021 - ]: Procedure

WARNING: This page is about a different car, the 2024 Lexus IS 500, 2023 Lexus IS 500, and 2022 Lexus IS 500. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE PROPELLER WITH CENTER BEARING SHAFT ASSEMBLY
Refer to REMOVAL [11/2021 - ]

DISCONNECT FLOOR SHIFT GEAR SHIFTING ROD SUB-ASSEMBLY

Move the shift lever to N.

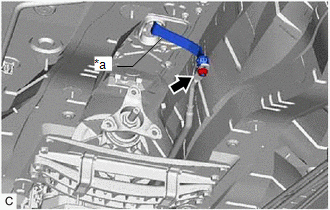

Remove the nut from the lever of the transmission floor shift assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Lever

Disconnect the floor shift gear shifting rod sub-assembly from the lever of the transmission floor shift assembly.

SUPPORT AUTOMATIC TRANSMISSION ASSEMBLY

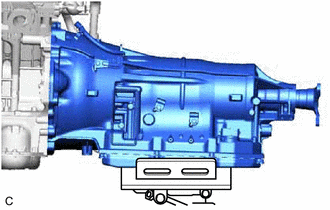

Support the automatic transmission assembly with a transmission jack.

NOTE:

In order to protect the automatic transmission oil pan sub-assembly, place attachments on the transmission jack.
Make sure that the attachments and automatic transmission oil pan sub-assembly are centered on the transmission jack.
To prevent the automatic transmission oil pan sub-assembly from being deformed, do not place any attachments under the automatic transmission oil pan sub-assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE ENGINE UNDER COVER AIR GUIDE BRACKET

Remove the 2 bolts and engine under cover air guide bracket from the vehicle body.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

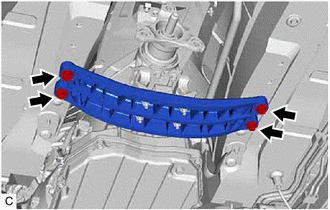

DISCONNECT REAR ENGINE MOUNTING MEMBER

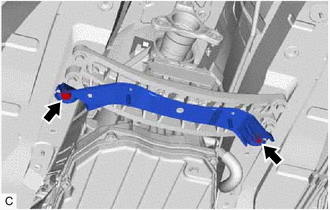

Remove the 4 bolts and disconnect the rear engine mounting member from the vehicle body.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE PARK/NEUTRAL POSITION SWITCH ASSEMBLY

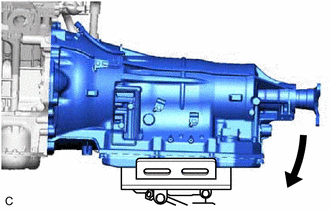

Tilt down the automatic transmission assembly.

NOTE:

Make sure that the vehicle body do not contact the engine assembly when tilting the automatic transmission assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

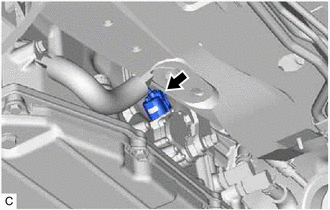

Disconnect the park/neutral position switch assembly connector.

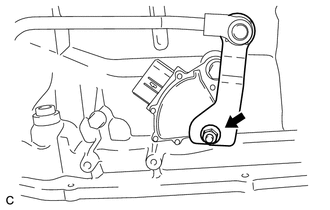

Remove the nut, spring washer and transmission control shaft lever RH from the manual valve lever shaft.

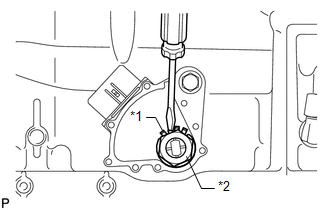

Using a screwdriver, bend back the tabs of the lock washer and remove the lock nut and lock washer from the park/neutral position switch assembly.

*1	Lock Washer
*2	Lock Nut

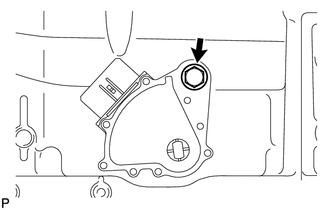

Remove the bolt and park/neutral position switch assembly from the automatic transmission assembly.

HINT:

Make sure that the manual valve lever shaft has not been rotated prior to installing the park/neutral position switch assembly as the detent spring may become detached from the manual valve lever shaft.
