Installation [08/2015 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2024 Lexus IS 300, 2023 Lexus IS 300, 2022 Lexus IS 300, 2021 Lexus IS 300, and 2020 Lexus IS 300. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL OIL PRESSURE SENDER GAUGE ASSEMBLY
1. Remove any oil from the threads of the oil pressure sender gauge assembly.
2. Apply adhesive to 2 or 3 threads of the oil pressure sender gauge assembly.
  Adhesive

  TOYOTA Genuine Adhesive 1344, Three Bond 1344 or equivalent.
  NOTE:
  - Install the oil pressure sender gauge assembly within 3 minutes after applying adhesive.
  - Do not let adhesive adhere to the oil hole.
3. Using a 27 mm deep socket wrench, install the oil pressure sender gauge assembly.
  Torque: 15 N.m (153 kgf/cm, 11 ft.lbf)

  NOTE:
  Do not start the engine within 1 hour of installation.
4. Connect the oil pressure sender gauge assembly connector.

CONNECT NO. 4 VENTILATION HOSE

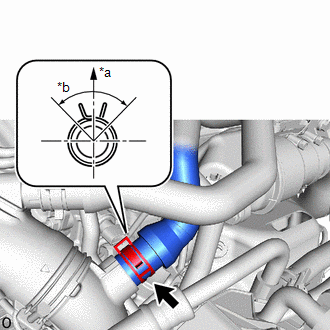

Install the No. 4 ventilation hose with the clip as shown in the illustration.

HINT:

Install the clip so that it is positioned as shown in the illustration.

*a	Upper Side
*b	90°

INSPECT FOR ENGINE OIL LEAK
See step 5 [08/2015 - 09/2020], or see step 5 [09/2020 - 11/2021], or see step 5 [11/2021 - 09/2022], or see step 5 [09/2022 - ]
