Installation [10/2016 - ]: Procedure
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2024 Lexus IS 300, 2023 Lexus IS 300, 2022 Lexus IS 300, 2021 Lexus IS 300, and 2020 Lexus IS 300. However, it is still accessible from the selected car via links, so may be relevant.
- INSTALL TEMPERATURE SENSOR
- Install a new gasket to the temperature sensor.

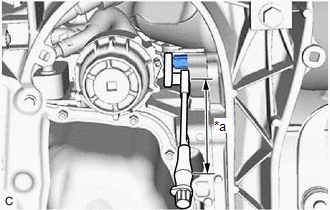

- Using a 19 mm ball joint lock nut wrench, install the temperature sensor to the stiffening crankcase assembly.
*a Torque Wrench Fulcrum Length Torque
Specified tightening torque
19.6 N.m (200 kgf/cm, 14 ft.lbf)
NOTE:If a temperature sensor has been struck or dropped, replace it.
HINT:
- Calculate the torque wrench reading when changing the fulcrum length of the torque wrench.
Refer to PRECAUTION [10/2016 - 10/2017] , or refer to PRECAUTION [10/2017 - 09/2020] , or refer to PRECAUTION [09/2020 - ]
- When using a ball joint lock nut wrench (fulcrum length of 150 mm (5.91 in.)) + torque wrench (fulcrum length of 162 mm (6.38 in.)): 10.2 N.m (104 kgf/cm, 8 ft.lbf)
- Calculate the torque wrench reading when changing the fulcrum length of the torque wrench.
- Connect the temperature sensor connector.
- ADD ENGINE OIL
See step 4 [08/2015 - 09/2020], or see step 4 [09/2020 - 11/2021], or see step 4 [11/2021 - 09/2022], or see step 4 [09/2022 - ]
- CHECK ENGINE OIL LEVEL
See step 6 [08/2015 - 09/2020], or see step 6 [09/2020 - 11/2021], or see step 6 [11/2021 - 09/2022], or see step 6 [09/2022 - ]
- INSPECT FOR ENGINE OIL LEAK
See step 5 [08/2015 - 09/2020], or see step 5 [09/2020 - 11/2021], or see step 5 [11/2021 - 09/2022], or see step 5 [09/2022 - ]
- INSTALL FRONT SUSPENSION MEMBER BRACE
Refer to PROCEDURE - Step 77 [10/2016 - 09/2020] , or refer to PROCEDURE - Step 77 [09/2020 - ]
