Installation [08/2015 - ]: Procedure
- CONNECT NO. 5 ENGINE WIRE
- Attach the 2 clamps to connect the No. 5 engine wire.
- INSTALL OIL COOLER ASSEMBLY
- Apply a light coat of engine oil to 2 new O-rings.
- Install the 2 O-rings to the stiffening crankcase assembly.
- Install the oil cooler assembly to the stiffening crankcase assembly with the 4 bolts in the order shown in the illustration.
Torque: 21 N.m (214 kgf/cm, 15 ft.lbf)
- Connect the No. 4 water by-pass hose and No. 5 water by-pass hose to the oil cooler assembly with the 2 clips as shown in the illustration.

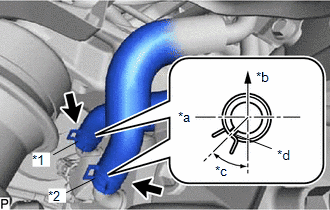

*1 No. 4 Water By-pass Hose *2 No. 5 Water By-pass Hose *a LH Side *b Upper Side *c 45° *d Paint HINT:
Install the clips so that they are positioned as shown in the illustration.
- INSTALL NO. 5 ENGINE WIRE
- Connect the 2 No. 5 engine wire connectors.
- INSTALL COOLER COMPRESSOR ASSEMBLY
Refer to INSTALLATION [08/2015 - 10/2017] , or refer to INSTALLATION [10/2017 - 09/2020] , or refer to INSTALLATION [09/2020 - 11/2021] , or refer to INSTALLATION [11/2021 - 09/2022] , or refer to INSTALLATION [09/2022 - ]
- INSTALL EXHAUST MANIFOLD CONVERTER SUB-ASSEMBLY
Refer to PROCEDURE - Step 45
- ADD ENGINE OIL
See step 4 [08/2015 - 09/2020], or see step 4 [09/2020 - 11/2021], or see step 4 [11/2021 - 09/2022], or see step 4 [09/2022 - ]
- CHECK ENGINE OIL LEVEL
See step 6 [08/2015 - 09/2020], or see step 6 [09/2020 - 11/2021], or see step 6 [11/2021 - 09/2022], or see step 6 [09/2022 - ]
- INSPECT FOR ENGINE OIL LEAK
See step 5 [08/2015 - 09/2020], or see step 5 [09/2020 - 11/2021], or see step 5 [11/2021 - 09/2022], or see step 5 [09/2022 - ]
