Installation [08/2015 - ]: Procedure
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2024 Lexus IS 300, 2023 Lexus IS 300, 2022 Lexus IS 300, 2021 Lexus IS 300, and 2020 Lexus IS 300. However, it is still accessible from the selected car via links, so may be relevant.
- INSTALL PCV VALVE (VENTILATION VALVE SUB-ASSEMBLY)
- Apply a light coat of engine oil to the O-ring.
- Using a 22 mm ball joint lock nut wrench, install the PCV valve (ventilation valve sub-assembly) to the cylinder head cover sub-assembly.
Torque
Specified tightening torque
5.0 N.m (51 kgf/cm, 44 in.lbf)
NOTE:When reusing the PCV valve (ventilation valve sub-assembly), inspect the O-ring.
HINT:
- Calculate the torque wrench reading when changing the fulcrum length of the torque wrench.
Refer to PRECAUTION [08/2015 - 10/2016] , or refer to PRECAUTION [10/2016 - 10/2017] , or refer to PRECAUTION [10/2017 - 09/2020] , or refer to PRECAUTION [09/2020 - ]

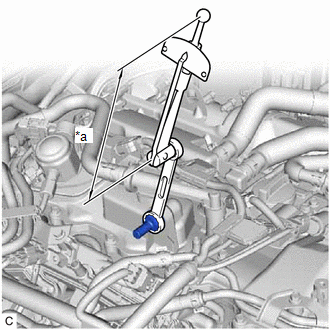

- When using a 22 mm ball joint lock nut wrench (fulcrum length of 149.75 mm (5.90 in.)) + torque wrench (fulcrum length of 185 mm (7.28 in.)): 2.8 N.m (29 kgf/cm, 25 in.lbf)
*a Torque Wrench Fulcrum Length - Calculate the torque wrench reading when changing the fulcrum length of the torque wrench.
- Connect the No. 2 ventilation hose to the PCV valve (ventilation valve sub-assembly) and slide the clip to secure it.
- INSTALL NO. 1 ENGINE COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 81 [08/2015 - 10/2016] , or refer to PROCEDURE - Step 80 [10/2016 - 09/2020] , or refer to PROCEDURE - Step 80
