Removal [08/2015 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2024 Lexus IS 300, 2023 Lexus IS 300, 2022 Lexus IS 300, 2021 Lexus IS 300, and 2020 Lexus IS 300. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE AIR FUEL RATIO SENSOR
Refer to REMOVAL [08/2015 - ]

REMOVE NO. 1 EXHAUST MANIFOLD HEAT INSULATOR

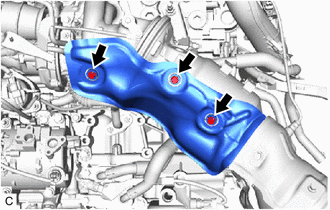

Remove the 5 bolts and No. 1 exhaust manifold heat insulator from the No. 1 heat insulator bracket and exhaust manifold converter sub-assembly (TWC: Front and Rear Catalyst).

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE NO. 4 EXHAUST MANIFOLD HEAT INSULATOR

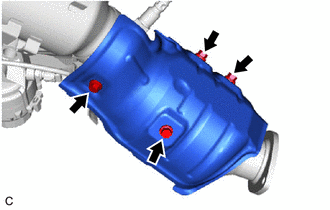

Remove the 3 bolts and No. 4 exhaust manifold heat insulator from the exhaust manifold converter sub-assembly (TWC: Front and Rear Catalyst) and turbocharger sub-assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE NO. 2 EXHAUST MANIFOLD HEAT INSULATOR

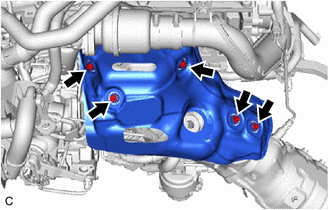

Remove the 4 bolts and No. 2 exhaust manifold heat insulator from the exhaust manifold converter sub-assembly (TWC: Front and Rear Catalyst).

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE TURBOCHARGER STAY

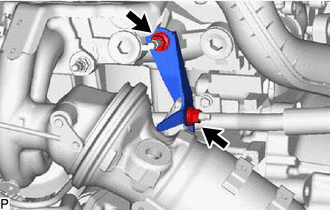

Remove the 2 nuts and turbocharger stay from the exhaust manifold converter sub-assembly (TWC: Front and Rear Catalyst) and cylinder head sub-assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE EXHAUST MANIFOLD CONVERTER SUB-ASSEMBLY (TWC: Front and Rear Catalyst)

While supporting the exhaust manifold converter sub-assembly (TWC: Front and Rear Catalyst) to prevent it from falling, loosen the exhaust pipe clamp and remove the exhaust manifold converter sub-assembly (TWC: Front and Rear Catalyst).

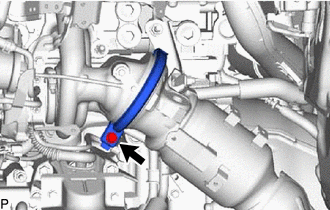

Remove the exhaust pipe clamp from the turbocharger sub-assembly.
Remove the outlet turbine elbow gasket from exhaust manifold converter sub-assembly (TWC: Front and Rear Catalyst).

REMOVE STUD BOLT

HINT:

If a stud bolt is deformed or its threads are damaged, replace it.

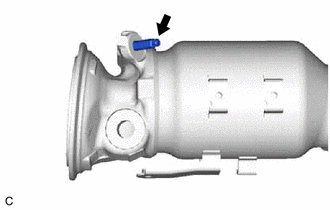

Using an E10 "TORX" socket wrench, remove the stud bolt from the exhaust manifold converter sub-assembly (TWC: Front and Rear Catalyst).
