Inspection [08/2015 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2024 Lexus IS 300, 2023 Lexus IS 300, 2022 Lexus IS 300, 2021 Lexus IS 300, and 2020 Lexus IS 300. However, it is still accessible from the selected car via links, so may be relevant.

INSPECT CYLINDER HEAD SUB-ASSEMBLY

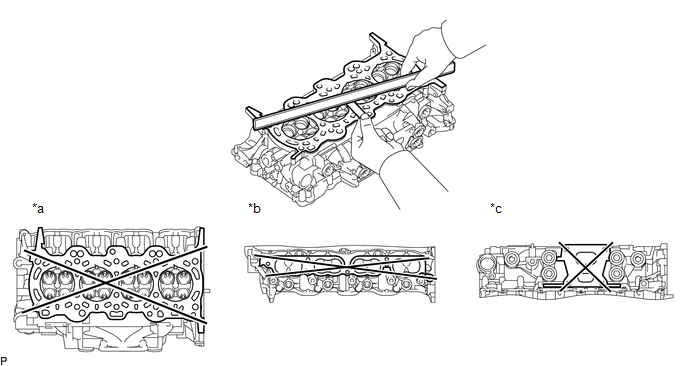

Using a precision straightedge and feeler gauge, measure the warpage of the contact surfaces where the cylinder head contacts the cylinder block sub-assembly and manifold.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Lower Side	*b	Intake Side
*c	Exhaust Side	-	-

Maximum Warpage

Item	Specified Condition
Lower Side	0.05 mm (0.00197 in.)
Intake Side	0.10 mm (0.00394 in.)
Exhaust Side	0.10 mm (0.00394 in.)

If the warpage is more than the maximum, replace the cylinder head sub-assembly.

Using a dye penetrant, check the intake ports, exhaust ports and cylinder surface for cracks.
If cracked, replace the cylinder head sub-assembly.

INSPECT COMPRESSION SPRING

Using a vernier caliper, measure the free length of the compression spring.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Paint Mark

If the free length is not as specified, replace the compression spring.

Standard Free Length

Paint Mark	Specified Condition
Intake Valve Side (White)	52.17 mm (2.05 in.)
Exhaust Valve Side (Purple)	61.22 mm (2.41 in.)

Using a steel square, measure the deviation of the compression spring at a compression spring that is 35 mm (1.378 in.) from the bottom of the compression spring (refer to the illustration).

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	35 mm (1.38 in.)
*b	Deviation

Maximum deviation

1.22 mm (0.0480 in.)

Maximum angle

2°

If the deviation is more than the maximum, replace the compression spring.

INSPECT INTAKE VALVE

Using a micrometer, measure the diameter of the intake valve stem.
Standard intake valve stem diameter

5.470 to 5.485 mm (0.215 to 0.216 in.)

Using a vernier caliper, measure the intake valve head margin thickness.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Margin Thickness

Standard margin thickness

1.0 mm (0.0394 in.)

Minimum margin thickness

0.50 mm (0.0197 in.)

If the margin thickness is less than the minimum, replace the intake valve.

Using a vernier caliper, measure the overall length of the intake valve.
Standard overall length

103.92 mm (4.09 in.)

Minimum overall length

103.42 mm (4.07 in.)

If the overall length is less than the minimum, replace the intake valve.

INSPECT EXHAUST VALVE

Using a micrometer, measure the diameter of the exhaust valve stem.
Standard exhaust valve stem diameter

5.465 to 5.480 mm (0.215 to 0.216 in.)

Using a vernier caliper, measure the exhaust valve head margin thickness.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Margin Thickness

Standard margin thickness

1.0 mm (0.0394 in.)

Minimum margin thickness

0.50 mm (0.0197 in.)

If the margin thickness is less than the minimum, replace the exhaust valve.

Using a vernier caliper, measure the overall length of the exhaust valve.
Standard overall length

112.91 mm (4.45 in.)

Minimum overall length

112.41 mm (4.43 in.)

If the overall length is less than the minimum, replace the exhaust valve.

INSPECT VALVE GUIDE BUSH OIL CLEARANCE

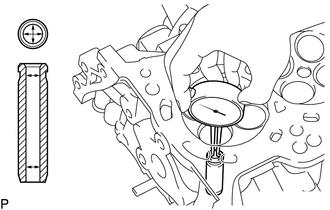

Using a caliper gauge, measure the inside diameter of the valve guide bush.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Standard bush inside diameter

5.510 to 5.530 mm (0.217 to 0.218 in.)

Subtract the valve stem diameter measurement from the guide bush inside diameter measurement.

Standard Oil Clearance

Item	Specified Condition
Intake Side	0.025 to 0.060 mm (0.000984 to 0.00236 in.)
Exhaust Side	0.030 to 0.065 mm (0.00118 to 0.00256 in.)

Maximum Oil Clearance

Item	Specified Condition
Intake Side	0.08 mm (0.00315 in.)
Exhaust Side	0.10 mm (0.00394 in.)

If the oil clearance is more than the maximum, replace the valve and valve guide bush.

INSPECT INTAKE VALVE SEAT

Apply a light coat of Prussian blue to the intake valve face.

Lightly press the intake valve face against the intake valve seat.

Width

HINT:

Do not rotate the intake valve while pressing the intake valve.

Check the intake valve face and intake valve seat.
1. Check that the contact surfaces of the intake valve seat and intake valve face are in the middle area of their respective surfaces, with the width between 1.0 and 1.4 mm (0.0394 and 0.0551 in.).
  If not, correct the intake valve seat.
2. Check that the contact surfaces of the intake valve seat and intake valve face are even around the entire intake valve seat.
  If not, correct the intake valve seat.

INSPECT EXHAUST VALVE SEAT

Apply a light coat of Prussian blue to the exhaust valve face.

Lightly press the exhaust valve face against the exhaust valve seat.

Width

HINT:

Do not rotate the exhaust valve while pressing the exhaust valve.

Check the exhaust valve face and exhaust valve seat.
1. Check that the contact surfaces of the exhaust valve seat and exhaust valve face are in the middle area of their respective surfaces, with the width between 1.2 and 1.6 mm (0.0472 and 0.0630 in.).
  If not, correct the exhaust valve seat.
2. Check that the contact surfaces of the exhaust valve seat and exhaust valve face are even around the entire exhaust valve seat.
  If not, correct the exhaust valve seat.

INSPECT CAMSHAFT THRUST CLEARANCE

Inspect the camshaft and No. 2 camshaft.

Install the camshaft and No. 2 camshaft.
Refer to INSTALLATION [08/2015 - ]

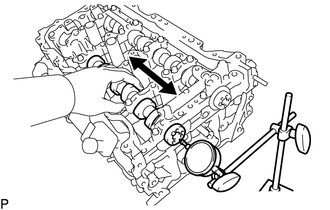

Using a dial indicator, measure the camshaft thrust clearance while moving the camshaft back and forth.

Standard Thrust Clearance

Item	Specified Condition
Camshaft	0.060 to 0.200 mm (0.00236 to 0.00787 in.)
No. 2 Camshaft	0.060 to 0.155 mm (0.00236 to 0.00610 in.)

Maximum Thrust Clearance

Item	Specified Condition
Camshaft	0.215 mm (0.00846 in.)
No. 2 Camshaft	0.170 mm (0.00669 in.)

If the thrust clearance is more than the maximum, replace the camshaft housing sub-assembly. If the thrust surface is damaged, replace the camshaft.
