Removal [11/2021 - ]: Procedure

WARNING: This page is about a different car, the 2024 Lexus IS 500, 2023 Lexus IS 500, and 2022 Lexus IS 500. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE AIR FUEL RATIO SENSOR

    Refer to REMOVAL [11/2021 - ]

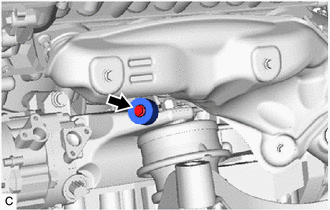

  2. REMOVE ENGINE MOUNTING DAMPER
    1. Remove the bolt and engine mounting damper from the front No. 1 engine mount bracket.
      GTY500878Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE NO. 2 EXHAUST MANIFOLD HEAT INSULATOR
    1. Remove the 3 bolts and No. 2 exhaust manifold heat insulator from the exhaust manifold sub-assembly LH (TWC: Front Catalyst).
      GTY500877Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

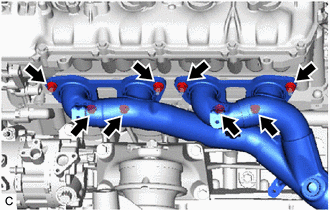

  4. REMOVE EXHAUST MANIFOLD SUB-ASSEMBLY LH (TWC: Front Catalyst)
    1. Remove the 8 nuts and exhaust manifold sub-assembly LH (TWC: Front Catalyst) from the cylinder head sub-assembly.
      GTY500874Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

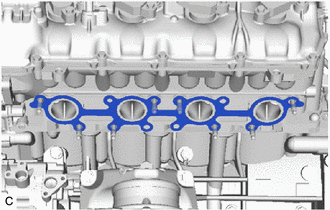

  5. REMOVE EXHAUST MANIFOLD TO HEAD GASKET (for Bank 1)
    1. Remove the exhaust manifold to head gasket from the cylinder head sub-assembly.
      GTY521742Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE ENGINE UNDER COVER SUB-ASSEMBLY RH

    Refer to PROCEDURE - Step 54

  7. REMOVE ENGINE OIL LEVEL DIPSTICK
    1. Remove the engine oil level dipstick from the engine oil level dipstick guide.

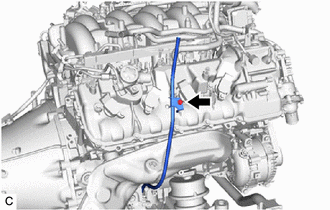

  8. REMOVE ENGINE OIL LEVEL DIPSTICK GUIDE
    1. Remove the bolt and engine oil level dipstick guide.
      GTY500869Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the O-ring from the engine oil level dipstick guide.

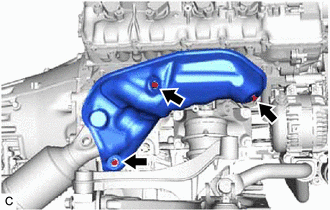

  9. REMOVE NO. 1 EXHAUST MANIFOLD HEAT INSULATOR
    1. Remove the 3 bolts and No. 1 exhaust manifold heat insulator from the exhaust manifold sub-assembly RH (TWC: Front Catalyst).
      GTY518240Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

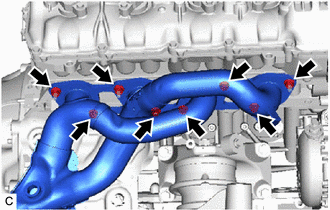

  10. REMOVE EXHAUST MANIFOLD SUB-ASSEMBLY RH (TWC: Front Catalyst)
    1. Remove the 8 nuts and exhaust manifold sub-assembly RH (TWC: Front Catalyst) from the cylinder head sub-assembly.
      GTY500880Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE EXHAUST MANIFOLD TO HEAD GASKET (for Bank 2)
    1. Remove the exhaust manifold to head gasket from the cylinder head sub-assembly.
      GTY516799Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
