Installation [08/2015 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2024 Lexus IS 300, 2023 Lexus IS 300, 2022 Lexus IS 300, 2021 Lexus IS 300, and 2020 Lexus IS 300. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL V-RIBBED BELT

HINT:

When reusing the V-ribbed belt, check the entire belt for wear and cracks on the ribs and back of the belt. If the V-ribbed belt is worn to the extent that the cords are exposed or chunks are missing from the ribs, replace the bolt.

Set the V-ribbed belt onto each pulley as shown in the illustration.

NOTE:

Make sure the back of the V-ribbed belt is set to the V-ribbed belt tensioner assembly and engine water pump assembly.

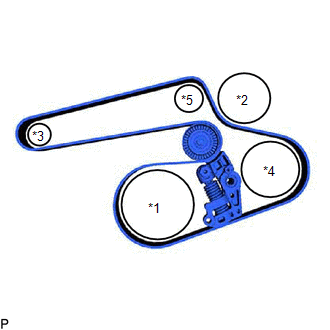

Fig 1: Drive Belt Routing

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	Crankshaft Pulley
*2	Engine Water Pump Assembly
*3	Generator Assembly
*4	Compressor and Magnetic Clutch
*5	Idler Pulley Sub-assembly

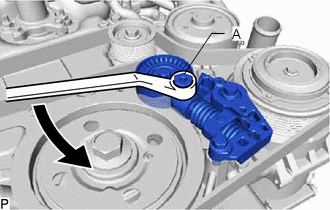

Attach a wrench to the hexagonal portion (A) of the V-ribbed belt tensioner assembly as shown in the illustration, and while rotating the V-ribbed belt tensioner assembly counterclockwise, remove the 5 mm bi-hexagon wrench.

Check that the V-ribbed belt is set correctly to each pulley.

*a	Correct
*b	Incorrect

Start the engine and check that the V-ribbed belt turns smoothly and quietly.

INSTALL ENGINE UNDER COVER
See step 79 [08/2015 - 10/2016], or refer to PROCEDURE - Step 78 [10/2016 - 09/2020] , or refer to PROCEDURE - Step 78 [09/2020 - ]
