On-Vehicle Inspection [10/2023 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2024 Lexus IS 350, 2024 Lexus IS 300, 2023 Lexus IS 350, 2023 Lexus IS 300, and 2022 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.

INSPECT ENGINE OIL LEVEL
1. Warm up the engine, stop it and wait 5 minutes. The engine oil level should be between the low level mark and refill upper limit mark on the engine oil level dipstick.
  If the level is low, check for engine oil leaks and add engine oil to the refill upper limit mark.

  NOTE:
  Do not fill to above the refill upper limit mark.

  HINT:

  A certain amount of engine oil will be consumed while driving. In the following situations, engine oil consumption may increase, and engine oil may need to be refilled in between oil maintenance intervals.
  - When the engine is new, for example directly after purchasing the vehicle or after replacing the engine.
  - If low quality engine oil or oil of an inappropriate viscosity is used.
  - When driving at high engine speeds or with a heavy load (when towing, etc.), or when accelerating or decelerating frequently while driving.
  - When idling for a long time, or when driving frequently through heavy traffic.
  When judging the amount of oil consumption, keep in mind that the oil may have become diluted, making it difficult to judge the true level accurately.
INSPECT ENGINE OIL QUALITY
1. Check the engine oil for deterioration, water intrusion, discoloration or thinning.
  If the condition is visibly poor, replace the engine oil and oil filter element.

INSPECT OIL PRESSURE

Remove the engine oil pressure switch assembly.
Refer to REMOVAL [10/2017 - ]

WARNING:
Make sure the engine is cold when removing the engine oil pressure switch assembly to prevent burns caused by hot engine oil.

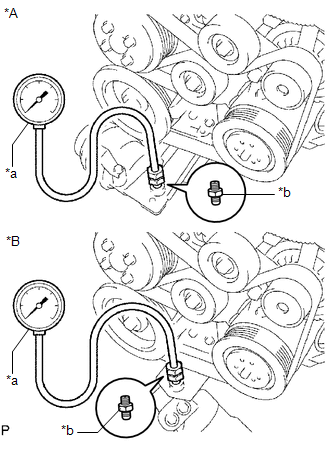

Install an oil pressure gauge with the adapter.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	for 2WD
*B	for AWD
*a	Oil Pressure Gauge
*b	Adapter

Warm up the engine.
HINT:

After warming up the engine, the engine coolant temperature is 75 to 100°C (167 to 212°F).

Check the oil pressure.

Standard Oil Pressure

Engine Condition	Oil Pressure
Idling	30 kPa (0.3 kgf/cm² , 4.4 psi) or higher
3000 rpm	200 kPa (2.0 kgf/cm² , 29 psi) or higher

If the result is not as specified, check the quality of the engine oil and check the oil paths for clogging. Repair or replace if necessary. If the engine oil pressure is still not as specified, check the timing chain cover sub-assembly.

Refer to INSPECTION [10/2017 - ]

Remove the oil pressure gauge with the adapter.
WARNING:
Make sure the engine is cold when removing the oil pressure gauge to prevent burns caused by hot engine oil.
Install the engine oil pressure switch assembly.
Refer to INSTALLATION [10/2017 - ]
Inspect for engine oil leaks.
Refer to PROCEDURE - Step 8
