  1. INSTALL VACUUM SURGE TANK
    1. Install the vacuum surge tank to the intake manifold with the 3 bolts.

      Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

  2. INSTALL NO. 4 VACUUM TRANSMITTING HOSE ASSEMBLY
    1. Install the No. 4 vacuum transmitting hose assembly to the vacuum surge tank and engage the 2 clamps.
  3. INSTALL VACUUM REGULATING VALVE ASSEMBLY
    1. Install the vacuum regulating valve assembly to the intake manifold with the 2 bolts.

      Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

  4. INSTALL NO. 1 TURBO PRESSURE SENSOR
    1. Install the No. 1 turbo pressure sensor to the intake manifold with the bolt.

      Torque: 9.0 N.m (92 kgf/cm, 80 in.lbf)

  5. INSTALL NO. 3 VACUUM TRANSMITTING HOSE ASSEMBLY
    1. Install the No. 3 vacuum transmitting hose assembly to the vacuum surge tank and vacuum regulating valve assembly.
    2. Engage the 2 clamps.
  6. INSTALL BRACKET
    1. Install the bracket to the intake manifold with the bolt.

      Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

  7. INSTALL NO. 2 FUEL VAPOR FEED HOSE
    1. Install the No. 2 fuel vapor feed hose to the intake manifold and slide the clip to secure it.
  8. INSTALL NO. 2 TURBO PRESSURE SENSOR
    1. Install the No. 2 turbo pressure sensor to the intake manifold with the bolt.

      Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

    2. Engage the No. 1 vacuum transmitting hose assembly to the intake manifold.
  9. TEMPORARILY INSTALL INTERCOOLER ASSEMBLY
    NOTE:

    If temporary installation is not performed, parts may not be correctly positioned. As a result, connecting parts may not be airtight.

    1. Temporarily install the intercooler support bracket sub-assembly to the intake manifold with the 2 bolts.
    2. Temporarily install the intercooler assembly to the intercooler support bracket sub-assembly with the 3 bolts.
    3. Temporarily install the throttle body with motor assembly to the intercooler assembly and intake manifold.

      Refer to INSTALLATION [08/2015 - ]

    4. Tighten the 2 bolts of the intercooler support bracket sub-assembly.

      Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

    5. Remove the throttle body with motor assembly from the intake manifold.

      Refer to REMOVAL [08/2015 - ]

    6. Remove the 3 bolts and intercooler assembly from the intercooler support bracket sub-assembly.
  10. SET INTERCOOLER ASSEMBLY

    See step  3

  11. INSTALL INTAKE MANIFOLD
    1. Install the No. 5 water by-pass pipe to the intercooler support bracket sub-assembly with the 2 bolts and nut.

      Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

    2. Install 2 new intake manifold gaskets to the intake manifold.
    3. Temporarily install the intake manifold to the cylinder head sub-assembly and intercooler support bracket sub-assembly with the 4 bolts and 2 nuts.
    4. Tighten the 4 bolts and 2 nuts in the order shown in the illustration.

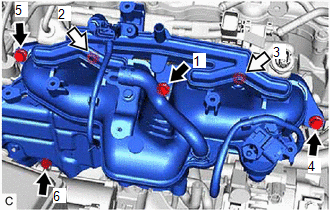

      Fig 1: Intake Manifold Tightening Sequence
      GTY655485Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt
      Nut

      Torque: 21 N.m (214 kgf/cm, 15 ft.lbf)

  12. CONNECT INLET HEATER WATER HOSE B
    1. Connect the heater hose to the No. 5 water by-pass pipe and slide the clip to secure it.
  13. CONNECT VACUUM TRANSMITTING HOSE ASSEMBLY
    1. Engage the 4 clamps and connect the vacuum transmitting hose assembly to the cylinder head cover sub-assembly.
    2. Connect the vacuum transmitting hose assembly to the waste gate valve actuator with bracket assembly.
      NOTE:

      Connect the vacuum transmitting hose assembly until the bent portion of the pipe of the waste gate valve actuator with bracket assembly.

  14. CONNECT NO. 2 VACUUM TRANSMITTING HOSE ASSEMBLY
    1. Connect the No. 2 vacuum transmitting hose assembly to the vacuum pump assembly.
    2. Engage the No. 2 vacuum transmitting hose assembly to the cylinder head cover sub-assembly.
  15. CONNECT NO. 3 WATER BY-PASS HOSE
    1. Connect the No. 3 water by-pass hose to the water outlet sub-assembly and slide the clip to secure it.
    2. Engage the clamp.
  16. CONNECT ENGINE WIRE
    1. Connect the 5 connectors.

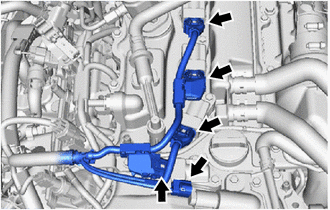

      GTY619508Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Engage the 2 clamps.

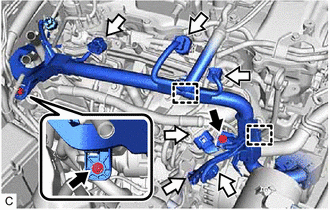

      GTY673235Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt
      Connector
    3. Connect the 6 connectors.
    4. Install the 2 bolts.

      Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

  17. CONNECT OUTLET HEATER WATER HOSE A

    Refer to PROCEDURE - Step 42 [08/2015 - 10/2016] , or refer to PROCEDURE - Step 42 [10/2016 - 09/2020] , or refer to PROCEDURE - Step 42 [09/2020 - ]

  18. CONNECT INLET HEATER WATER HOSE A

    Refer to PROCEDURE - Step 43 [08/2015 - 10/2016] , or refer to PROCEDURE - Step 43 [10/2016 - 09/2020] , or refer to PROCEDURE - Step 43 [09/2020 - ]

  19. INSTALL NO. 2 WATER BY-PASS PIPE
    1. Install the No. 2 water by-pass pipe to the intake manifold with the 2 bolts.

      Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

    2. Connect the No. 2 turbo water hose and No. 1 turbo water hose to the No. 1 turbo water pipe and slide the 2 clips to secure them.
  20. INSTALL NO. 2 VENTILATION HOSE
    1. Install the No. 2 ventilation hose to the intake manifold and cylinder head sub-assembly and slide the 2 clips to secure them.
  21. INSTALL FUEL HOSE BRACKET
    1. Install the fuel hose bracket to the intake manifold with the bolt.

      Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

    2. Engage the 2 fuel tube sub-assemblies to the fuel hose bracket.
    3. Engage the clamp
  22. INSTALL AIR CLEANER HOSE ASSEMBLY

    See step  3

  23. INSTALL NO. 1 ENGINE COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 81 [08/2015 - 10/2016] , or refer to PROCEDURE - Step 80 [10/2016 - 09/2020] , or refer to PROCEDURE - Step 80 [09/2020 - ]

  24. INSTALL INTERCOOLER RESERVE TANK ASSEMBLY
    1. Connect the No. 4 intercooler cooling water hose assembly to the intercooler reserve tank assembly and slide the clip to secure it.
    2. Install the intercooler reserve tank assembly to the intercooler reserve tank bracket with the 2 bolts.

      Torque: 12.5 N.m (127 kgf/cm, 9 ft.lbf)

    3. Connect the No. 3 intercooler cooling water hose assembly to the No. 2 water by-pass pipe and slide the clip to secure it.
    4. Engage the 2 fuel hoses to the intercooler reserve tank assembly.
  25. INSTALL PURGE VALVE (PURGE VSV)

    Refer to INSTALLATION [08/2015 - ]

  26. INSTALL INTERCOOLER ASSEMBLY

    See step  18

  27. CONNECT NO. 1 AIR TUBE

    See step  19

  28. CONNECT ENGINE WIRE

    See step  20

  29. INSTALL HEATER WATER PUMP ASSEMBLY

    See step  21

  30. CONNECT NO. 9 WATER BY-PASS HOSE

    See step  22

  31. CONNECT NO. 8 WATER BY-PASS HOSE

    See step  23

  32. CONNECT NO. 1 VACUUM TRANSMITTING HOSE

    See step  24

  33. CONNECT NO. 2 TURBO WATER HOSE

    See step  25

  34. INSTALL THROTTLE BODY WITH MOTOR ASSEMBLY

    Refer to INSTALLATION [08/2015 - ]
