Installation [08/2015 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2024 Lexus IS 300, 2023 Lexus IS 300, 2022 Lexus IS 300, 2021 Lexus IS 300, and 2020 Lexus IS 300. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL INTAKE AIR CONTROL VALVE (AIR BY-PASS VALVE ASSEMBLY)
    1. Using a T30 "TORX" socket wrench, install the intake air control valve (air by-pass valve assembly) with the 3 bolts.

      Torque: 8.5 N.m (87 kgf/cm, 75 in.lbf)

  2. CONNECT ENGINE WIRE
    1. Install the 2 nuts.

      Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

    2. Engage the clamp.

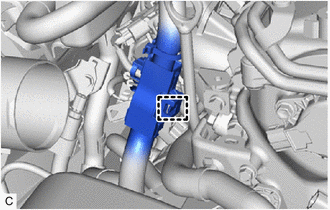

      GTY678548Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Connect the engine coolant temperature sensor connector.
    4. Connect the camshaft timing oil control solenoid assembly connector.
    5. Install the nut.

      Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

    6. Connect the intake air control valve (air by-pass valve assembly) connector.
    7. Engage the clamp.
      GTY619603Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    8. Connect the connector and install the bolt.

      Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

    9. Engage the clamp.
      GTY619607Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    10. Connect the ECM connector and lower the lever.
      NOTE:
      • When connecting the ECM connector, make sure that the connecting parts of the ECM connector are free of dirt, water or other foreign matter.
      • Be sure to securely connect the ECM connector.
  3. INSTALL AIR CLEANER HOSE ASSEMBLY

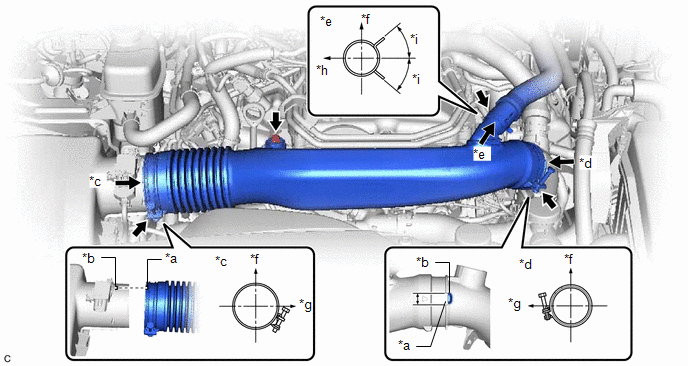

    1. Align the cutout of the air cleaner hose assembly with the protrusion of the air cleaner cap assembly.
      GTY679046Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Cutout *b Protrusion
      *c View A *d View B
      *e View C *f Upper
      *g Front *h Rear
      *i 45° - -

      HINT:

      Make sure the direction of the clip is as shown in the illustration.

    2. Align the cutout of the air cleaner hose assembly with the protrusion of the compressor inlet elbow, and install the air cleaner hose assembly.

      HINT:

      Make sure the direction of the clip is as shown in the illustration.

    3. Connect the No. 1 ventilation hose to the air cleaner hose assembly and slide the clip to secure it.
    4. Install the bolt.

      Torque: 5.0 N.m (51 kgf/cm, 44 in.lbf)

    5. Tighten the 2 hose clamps to the positions shown in the illustration.

      Torque: 4.0 N.m (41 kgf/cm, 35 in.lbf)

  4. INSTALL NO. 1 ENGINE COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 81 [08/2015 - 10/2016] , or refer to PROCEDURE - Step 80 [10/2016 - 09/2020] , or refer to PROCEDURE - Step 80 [09/2020 - ]

  5. INSTALL ENGINE ROOM ECU COVER

    Refer to PROCEDURE - Step 4

  6. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Refer to INITIALIZATION [08/2015 - 10/2016] , or refer to INITIALIZATION [10/2016 - 10/2017] , or refer to INITIALIZATION [10/2017 - 09/2020] , or refer to INITIALIZATION [09/2020 - 11/2021] , or refer to INITIALIZATION [11/2021 - 09/2022] , or refer to INITIALIZATION [09/2022 - 10/2023] , or refer to INITIALIZATION [10/2023 - ]
