Installation [04/2013 - 08/2015]: Procedure

1. Apply MP grease to the lip of a new timing gear case or timing chain case oil seal.
   NOTE:

   Keep the lip free of foreign matter.

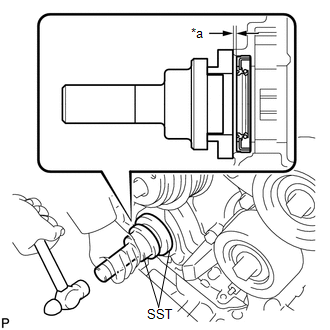

2. Using SST and a hammer, tap in the timing gear case or timing chain case oil seal until its surface is flush with the timing chain or belt cover sub-assembly edge.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Standard depth

   • SST: 09223-2201009506-35010

   Standard depth

   0 to 1.0mm (0 to 0.0394 in.)

   NOTE:

   • Keep the lip free of foreign matter.
   • Do not tap the timing gear case or timing chain case oil seal at an angle.
   • Do not deform the timing gear case or timing chain case oil seal.
   • Make sure that the timing gear case or timing chain case oil seal is not protruded from the timing chain or belt cover sub-assembly.
   • Wipe off MP grease on the crankshaft.
   • Make sure that the lip of the timing gear case or timing chain case oil seal is not turned over.

1. Install the crankshaft timing gear key to the crankshaft groove.

1. Align the crankshaft timing gear key with the key groove of the crankshaft pulley, and slide on the crankshaft pulley.

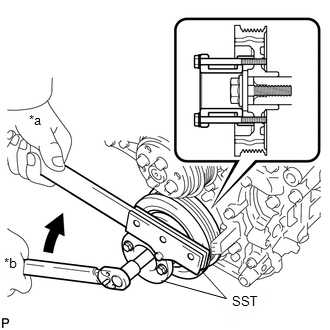

2. Using SST, hold the crankshaft pulley and install the crankshaft pulley bolt.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Hold
   *b	Turn

   • SST: 09330-0002109213-70011
     1. 09213-70020

   Torque: 250 N.m (2549 kgf/cm, 184 ft.lbf)

1. Install the wire harness bracket with the bolt.

   Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

2. Connect the engine oil pressure switch assembly connector.

See step  1

Refer to INSTALLATION [04/2013 - 08/2015]
