Removal [04/2013 - 08/2015]: Procedure

WARNING: This page is about a different car, the 2015 Lexus IS 250 and 2014 Lexus IS 250. However, it is still accessible from the selected car via links, so may be relevant.
  1. PRECAUTION
    NOTE:

    After turning the engine switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.

    Refer to PRECAUTION [04/2013 - 08/2015]

  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Refer to INITIALIZATION [04/2013 - 06/2014] , or refer to INITIALIZATION [06/2014 - 08/2015]

  3. REMOVE INTAKE AIR SURGE TANK ASSEMBLY

    Refer to REMOVAL [04/2013 - 08/2015]

  4. REMOVE ENGINE UNDER COVER

    Refer to PROCEDURE - Step 10

  5. REMOVE FRONT SUSPENSION MEMBER BRACE

    Refer to PROCEDURE - Step 13

  6. REMOVE NO. 2 ENGINE UNDER COVER (w/ No. 2 Engine Under Cover)

    Refer to PROCEDURE - Step 14

  7. DRAIN ENGINE COOLANT

    Refer to PROCEDURE - Step 4

  8. DRAIN AUTOMATIC TRANSMISSION FLUID

    See step  3

  9. REMOVE PROPELLER WITH CENTER BEARING SHAFT ASSEMBLY

    Refer to REMOVAL [04/2013 - 08/2015]

  10. REMOVE ENGINE UNDER BRACE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 41

  11. REMOVE STARTER ASSEMBLY

    Refer to REMOVAL [04/2013 - 08/2015]

  12. REMOVE FLYWHEEL HOUSING SIDE COVER
    1. Remove the flywheel housing side cover from the engine assembly.
      GTY294267Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. REMOVE DRIVE PLATE AND TORQUE CONVERTER ASSEMBLY SETTING BOLT
    1. Using SST, hold the crankshaft pulley.
      • SST: 09213-7001109330-00021
        1. 09213-70020
      GTY464035Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 6 drive plate and torque converter assembly setting bolts.
      GTY291116Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      There will be one black colored bolt.

  14. REMOVE FLOOR SHIFT GEAR SHIFTING ROD SUB-ASSEMBLY
    1. Move the shift lever to N.

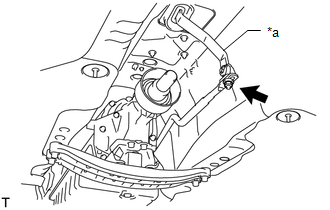

    2. Remove the nut and separate the floor shift gear shifting rod sub-assembly from the lever of the transmission floor shift assembly.
      GTY459034Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Lever

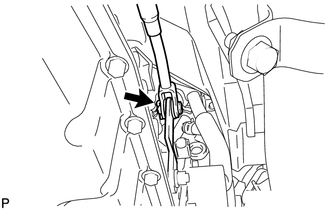

    3. Remove the clip, pin and floor shift gear shifting rod sub-assembly from the transmission control shaft lever RH.
      GTY469357Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. SUPPORT AUTOMATIC TRANSMISSION ASSEMBLY

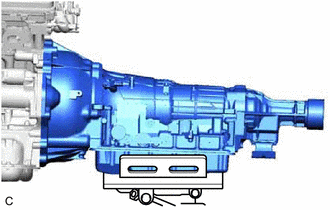

    1. Support the automatic transmission assembly with a transmission jack.
      GTY469010Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • In order to protect the automatic transmission oil pan sub-assembly, place attachments on the transmission jack.
      • Make sure that the attachments and the automatic transmission oil pan sub-assembly are centered on the transmission jack.
      • To prevent the automatic transmission oil pan sub-assembly from deforming, do not place any attachments under the automatic transmission oil pan sub-assembly of the automatic transmission assembly.
  16. REMOVE REAR ENGINE MOUNTING MEMBER

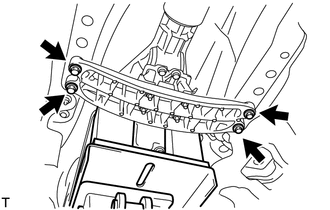

    1. Remove the 4 bolts and separate the rear engine mounting member from the body.
      GTY416515Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

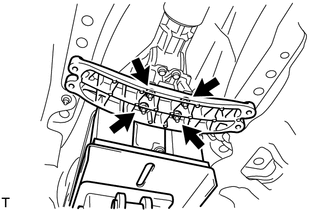

    2. Remove the 4 nuts and rear engine mounting member from the automatic transmission assembly.
      GTY398101Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. DISCONNECT NO. 2 EARTH WIRE

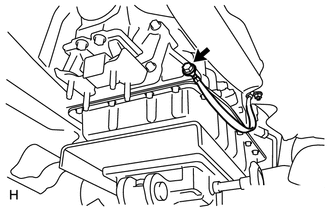

    1. Remove the bolt and disconnect the No. 2 earth wire from the automatic transmission assembly.
      GTY356776Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. DISCONNECT WIRE HARNESS AND CONNECTOR

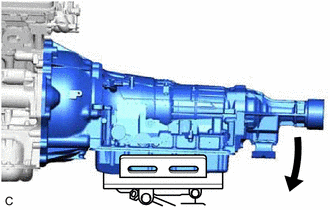

    1. Tilt down the automatic transmission assembly.
      GTY458340Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Make sure that the cooling fan and fan shroud do not contact the engine assembly when tilting the automatic transmission assembly.

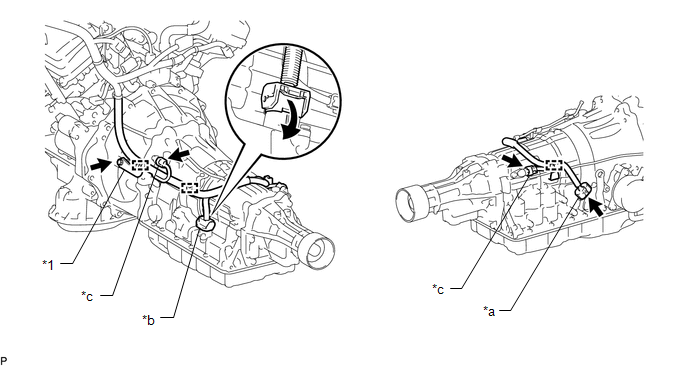

    2. Disconnect the park/neutral position switch assembly connector.
      GTY462104Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Wire Harness Clamp Bracket - -
      *a Park/neutral Position Switch Assembly Connector *b Transmission Wire Connector
      *c Transmission Revolution Sensor Connector - -
    3. Disconnect the transmission wire connector.

      HINT:

      Disengage the claw, pull down the lever, and then disconnect the transmission wire connector.

    4. Disconnect the 2 transmission revolution sensor connectors.
    5. Disconnect the 3 clamps and remove the wire harness from the automatic transmission assembly.
    6. Remove the bolt and wire harness clamp bracket from the automatic transmission assembly.
  19. DISCONNECT WATER BY-PASS HOSE
    1. Remove the bolt and hose clamp from the automatic transmission assembly.
      GTY466570Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Hose Clamp
    2. Slide the 2 clips and disconnect the water by-pass hose and No. 2 water by-pass hose from the transmission oil cooler.

      HINT:

      Use a container to catch any coolant which flows out of the water by-pass hose and No. 2 water by-pass hose.

  20. REMOVE AUTOMATIC TRANSMISSION ASSEMBLY

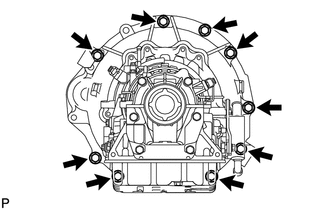

    1. Remove the 9 bolts and automatic transmission assembly from the engine assembly.
      GTY464697Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • Secure the automatic transmission assembly to the transmission jack using a belt, etc. to prevent it from falling.
      • To prevent damage to the knock pins, do not pry between the automatic transmission assembly and engine assembly.
  21. REMOVE REAR NO. 1 ENGINE MOUNTING INSULATOR

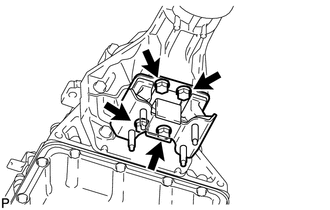

    1. Remove the 4 bolts and rear No. 1 engine mounting insulator from the automatic transmission assembly.
      GTY464694Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  22. REMOVE TRANSMISSION CASE COVER (w/ Case Cover)

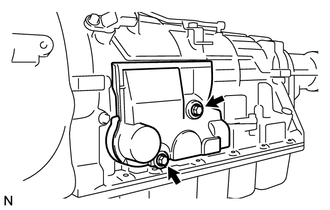

    1. Remove the 2 bolts and transmission case cover from the automatic transmission assembly.
      GTY462341Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  23. REMOVE TORQUE CONVERTER ASSEMBLY
    1. Put matchmarks on the case and the torque converter assembly.
      GTY459641Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Matchmark
    2. Remove the torque converter assembly from the automatic transmission assembly.
  24. INSPECT TORQUE CONVERTER ASSEMBLY

    Refer to INSPECTION [04/2013 - 08/2015]
