Removal [11/2021 - ]: Procedure

WARNING: This page is about a different car, the 2024 Lexus IS 500, 2023 Lexus IS 500, and 2022 Lexus IS 500. However, it is still accessible from the selected car via links, so may be relevant.
  1. PRECAUTION
    NOTE:

    After turning the engine switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.

    Refer to PRECAUTION [09/2020 - ]

  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Refer to INITIALIZATION [11/2021 - 09/2022] , or refer to INITIALIZATION [09/2022 - 10/2023] , or refer to INITIALIZATION [10/2023 - ]

  3. REMOVE EXHAUST MANIFOLD SUB-ASSEMBLY RH

    Refer to REMOVAL [11/2021 - ]

  4. REMOVE NO. 3 EXHAUST MANIFOLD HEAT INSULATOR
    1. Remove the 3 bolts and No. 3 exhaust manifold heat insulator.

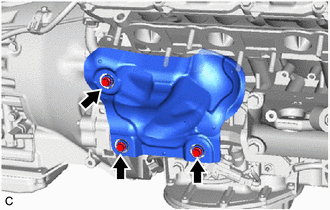

      GTY516386Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE STARTER ASSEMBLY
    1. Disconnect the starter assembly connector.

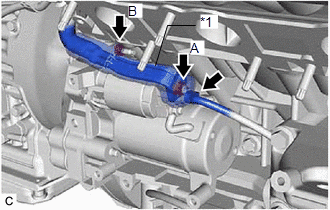

      GTY1084027Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Terminal Cover
    2. Open the terminal cover.
    3. Remove the nut (A) and disconnect the engine wire from terminal 30.
    4. Remove the nut (B) and terminal cover.
    5. Remove the 2 bolts and starter assembly.

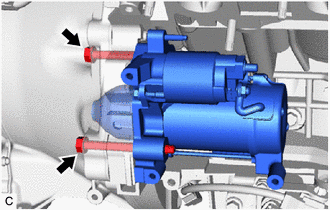

      GTY516383Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE FLYWHEEL HOUSING SIDE COVER
    1. Remove the flywheel housing side cover.

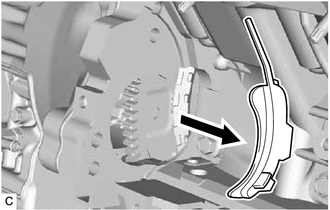

      GTY516397Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
