Installation [11/2021 - ]: Procedure

WARNING: This page is about a different car, the 2024 Lexus IS 500, 2023 Lexus IS 500, and 2022 Lexus IS 500. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL FLYWHEEL HOUSING SIDE COVER
1. Install the flywheel housing side cover.

INSTALL STARTER ASSEMBLY

Install the starter assembly with the 2 bolts.
Torque: 37 N.m (377 kgf/cm, 27 ft.lbf)

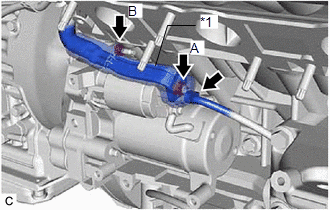

Install the terminal cover with the nut (B).

Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

*1	Terminal Cover

Connect the engine wire to terminal 30 with the nut (A).
Torque: 9.8 N.m (100 kgf/cm, 87 in.lbf)
Close the terminal cover.
Connect the starter assembly connector.

INSTALL NO. 3 EXHAUST MANIFOLD HEAT INSULATOR
1. Install the No. 3 exhaust manifold heat insulator with the 3 bolts.
  Torque: 11.5 N.m (117 kgf/cm, 8 ft.lbf)
INSTALL EXHAUST MANIFOLD SUB-ASSEMBLY RH
Refer to INSTALLATION [11/2021 - ]
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

Refer to INITIALIZATION [11/2021 - 09/2022] , or refer to INITIALIZATION [09/2022 - 10/2023] , or refer to INITIALIZATION [10/2023 - ]
