Installation [04/2013 - 10/2017]: Procedure

  1. INSTALL STUD BOLT

    HINT:

    If a stud bolt is deformed or the threads are damaged, replace it.

    1. Using an E8 "TORX" socket wrench, install the 2 stud bolts.

      Torque: 4.0 N*m (41 kgf*cm, 35 in.*lbf)

      GTY463648Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL INTAKE MANIFOLD
    1. Set 2 new gaskets on the cylinder head sub-assembly.
      NOTE:
      • Align the port holes of the gaskets and cylinder head sub-assembly.
      • Make sure that the gaskets are installed in the correct direction.
    2. Set the intake manifold on the cylinder head sub-assembly.
    3. Temporarily install the intake manifold with the 4 bolts and 4 nuts.
    4. Tighten the 4 bolts and 4 nuts in the order shown in the illustration.

      Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf)

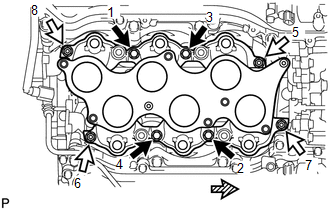

      Fig 1: Intake Manifold Tightening Sequence
      GTY462516Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt
      Nut
      Front
  3. INSTALL FUEL DELIVERY PIPE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 2

  4. INSTALL INTAKE AIR SURGE TANK ASSEMBLY
    NOTE:

    Do not apply oil to the bolts listed below.

    Oil Application Prohibited Bolt
    Bolt for Intake Air Surge Tank Assembly and Intake Manifold
    Bolt for No. 1 Surge Tank Stay and Intake Air Surge Tank Assembly
    1. Install 3 new gaskets to the intake air surge tank assembly.
    2. Temporarily install the intake air surge tank assembly with the 6 bolts and 2 nuts.
    3. Using a 5 mm hexagon socket wrench, tighten the 6 bolts and 2 nuts in the order shown in the illustration.
      Fig 2: Intake Air Surge Tank Assembly Tightening Sequence
      GTY459048Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt
      Nut

      Bolt

      Torque: 18 N*m (184 kgf*cm, 13 ft.*lbf)

      Nut

      Torque: 16 N*m (163 kgf*cm, 12 ft.*lbf)

    4. Connect the No. 2 surge tank stay to the intake air surge tank assembly with the bolt.

      Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf)

    5. Connect the No. 3 water by-pass pipe to the intake air surge tank assembly with the bolt.

      Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

    6. Connect the 5 wire harness clamps to the intake air surge tank assembly.
    7. Connect the No. 2 water by-pass hose to the intake air surge tank assembly clamp.
    8. Connect the union to check valve hose to the intake air surge tank assembly and slide the clip to secure it.
    9. Connect the ventilation hose assembly to the PCV valve (ventilation valve sub-assembly) and slide the clip to secure it.
    10. Connect the purge valve (purge VSV) to the intake air surge tank assembly with the bolt.

      Torque: 18 N*m (184 kgf*cm, 13 ft.*lbf)

    11. Connect the No. 1 fuel vapor feed hose to the purge valve (purge VSV).
    12. Connect the purge valve (purge VSV) connector.
  5. INSTALL COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY

    Refer to INSTALLATION [04/2013 - 09/2020]

  6. INSTALL THROTTLE BODY WITH MOTOR ASSEMBLY

    Refer to INSTALLATION [04/2013 - 08/2015] , or refer to INSTALLATION [08/2015 - 10/2017]

  7. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Refer to INITIALIZATION [04/2013 - 06/2014] , or refer to INITIALIZATION [06/2014 - 08/2015] , or refer to INITIALIZATION [08/2015 - 10/2016] , or refer to INITIALIZATION [10/2016 - 10/2017]

  8. INSPECT FOR FUEL LEAK

    Refer to PROCEDURE - Step 1
