Removal [10/2016 - 09/2020]: Procedure
- PRECAUTION NOTE:
After turning the engine switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.
Refer to PRECAUTION [10/2016 - 10/2017] , or refer to PRECAUTION [10/2017 - 09/2020]
- CUSTOMIZE POWER TILT AND POWER TELESCOPIC STEERING COLUMN SYSTEM (for Power Tilt and Power Telescopic Steering Column)
Refer to PROCEDURE - Step 2 [10/2016 - 10/2017] , or refer to PROCEDURE - Step 2 [10/2017 - 09/2020]
- DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected.
Refer to INITIALIZATION [10/2016 - 10/2017] , or refer to INITIALIZATION [10/2017 - 09/2020]
- REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 9 [10/2016 - 10/2017] , or refer to PROCEDURE - Step 9 [10/2017 - 09/2020]
- DISCONNECT HOOD LOCK CONTROL LEVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 10 [10/2016 - 10/2017] , or refer to PROCEDURE - Step 10 [10/2017 - 09/2020]
- REMOVE LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY
Refer to PROCEDURE - Step 11 [10/2016 - 10/2017] , or refer to PROCEDURE - Step 11 [10/2017 - 09/2020]
- REMOVE METER HOOD SUB-ASSEMBLY
Refer to PROCEDURE - Step 14 [10/2016 - 10/2017] , or refer to PROCEDURE - Step 14 [10/2017 - 09/2020]

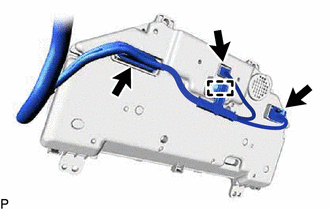

- REMOVE COMBINATION METER ASSEMBLY
