Removal [04/2013 - 08/2015]: Procedure

Refer to REMOVAL [04/2013 - 08/2015]

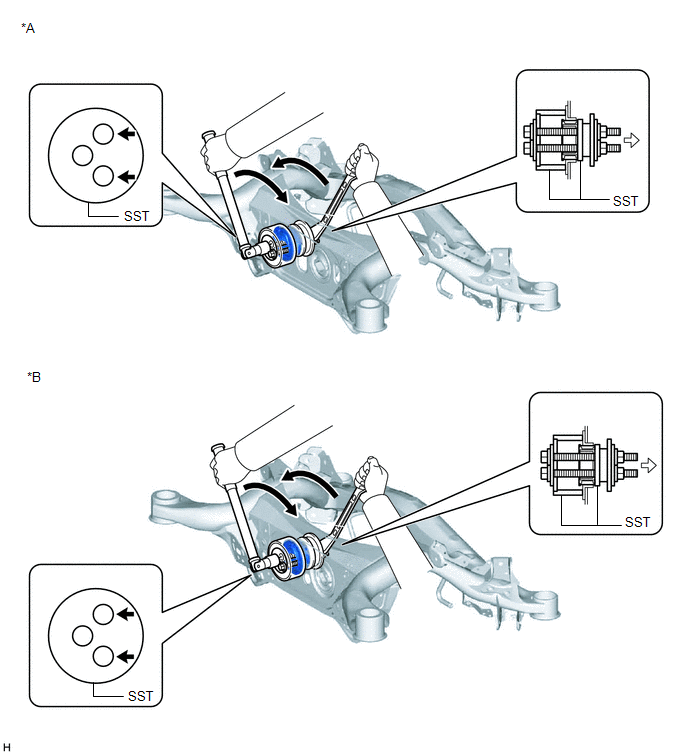

1. Using SST, remove the rear No. 1 differential mount cushion.
   • SST: 09316-1201009570-24011

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *A	for 2GR-FSE	*B	for 4GR-FSE
   	SST bolt location		Front of the Vehicle

   NOTE:

   • Before using SST, apply grease to the SST bolts.
   • Be sure to use the correct combination of SST.
   • Make sure that SST (09316-12010) contacts the entire circumference of the rear No. 1 differential mount cushion.
   • Do not tilt the bolts of SST.
   • Tighten the 2 bolts of SST so that they enter the 2 holes of the rear No. 1 differential mount cushion by an equal amount.
   • Do not bring SST (09316-12010) into contact with the rear suspension member sub-assembly.

   HINT:

   Install the 2 SST bolts to the 2 SST holes as shown in the illustration.

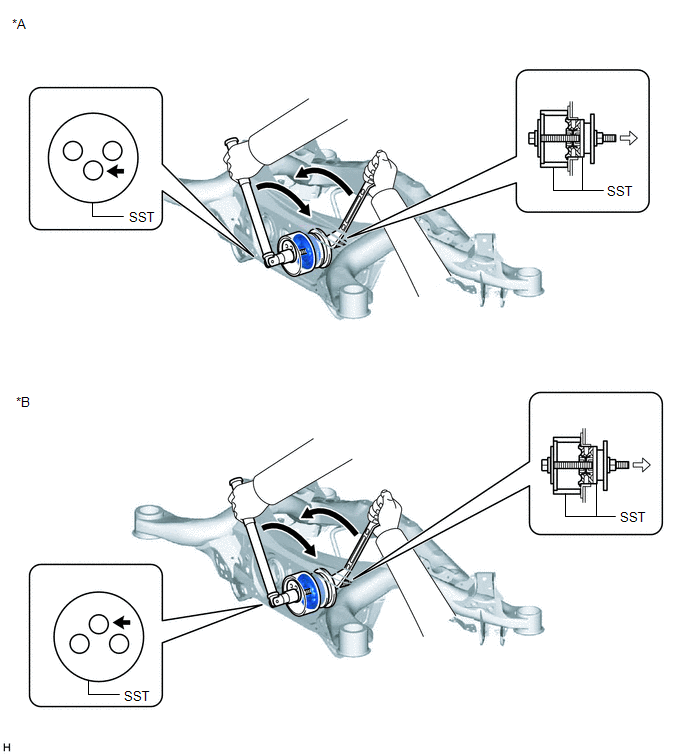

1. Using SST, remove the rear No. 2 differential mount cushion.
   • SST: 09316-1201009570-24011

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *A	for 2GR-FSE	*B	for 4GR-FSE
   	SST bolt location		Front of the Vehicle

   NOTE:

   • Before using SST, apply grease to the SST bolt.
   • Be sure to use the correct combination of SST.
   • Make sure that SST (09316-12010) contacts the entire circumference of the rear No. 2 differential mount cushion.
   • Do not tilt the bolt of SST.
   • Do not bring SST (09316-12010) into contact with the rear suspension member sub-assembly.

   HINT:

   Install the SST bolt to the SST hole as shown in the illustration.
