Installation [04/2013 - 08/2015]: Procedure

INSTALL FRONT DIFFERENTIAL CARRIER ASSEMBLY

NOTE:

Do not damage the installation surface when installing the front differential carrier assembly.
The remaining oil may leak out when installing the front differential carrier assembly.
Securely support the front differential carrier assembly while performing this step to avoid excessively tilting or dropping the front differential carrier assembly.
Install the bolts with the front differential carrier assembly secured.

Support the front differential carrier assembly with a jack.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

WARNING:

The front differential carrier assembly is a heavy component. Make sure that it is supported securely.

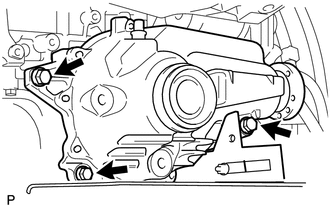

Temporarily install the front differential carrier assembly to the engine assembly with the 3 bolts.
Tighten the 3 bolts to install the front differential carrier assembly.
Torque: 87.3 N.m (890 kgf/cm, 64 ft.lbf)

INSTALL FRONT FRAME ASSEMBLY
for 2GR-FSE: Refer to PROCEDURE - Step 9

for 4GR-FSE: Refer to PROCEDURE - Step 9
