Installation [09/2020 - ]: Procedure

1. Apply a light coat of lithium soap base glycol grease to a new O-ring.
2. Install the O-ring to the rear disc brake cylinder assembly.
   NOTE:

   Make sure to replace the O-ring with a new one when installing the parking brake actuator assembly.

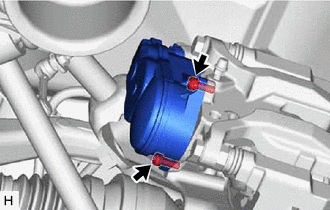

3. Using a 5 mm hexagon socket wrench, install the parking brake actuator assembly to the rear disc brake cylinder assembly with the 2 bolts.

   Torque: 8.4 N.m (86 kgf/cm, 74 in.lbf)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

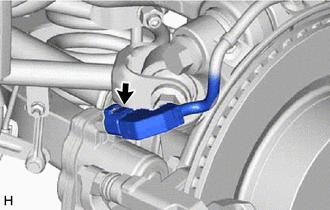

1. Connect the No. 2 parking brake wire assembly connector to the parking brake actuator assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NOTE:

   • Remove any dirt or foreign matter on and around the No. 2 parking brake wire assembly connector before performing this work.
   • Do not allow water, oil or dirt to enter the No. 2 parking brake wire assembly connector.

Refer to PROCEDURE - Step 1 [09/2020 - 10/2023] , or refer to PROCEDURE - Step 2 [10/2023 - ]
