Removal [04/2013 - 10/2016]: Procedure

  1. REMOVE INNER REAR VIEW MIRROR STAY HOLDER COVER

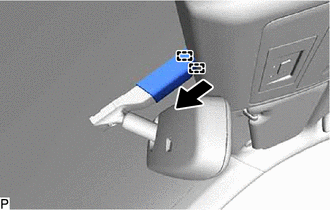

    1. Disengage the 2 guides and slide the inner rear view mirror stay holder cover as shown in the illustration.
      GTY469309Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

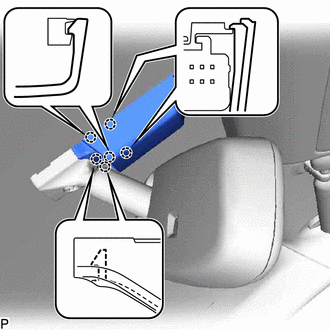

    2. Disengage the 6 claws to remove the inner rear view mirror stay holder cover.
      GTY459707Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE INNER REAR VIEW MIRROR ASSEMBLY

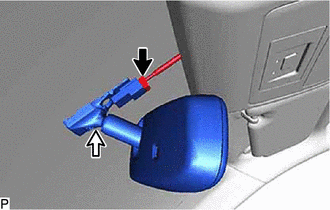

    1. Disconnect the connector.
      GTY459705Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a T20 "TORX" socket wrench, remove the screw and inner rear view mirror assembly.
