Removal [04/2013 - 10/2016]: Procedure

  1. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY
    1. Disengage the claw and disconnect the shift hole cover sub-assembly as shown in the illustration.
      GTY470255Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Turn the shift lever knob sub-assembly counterclockwise and remove it.

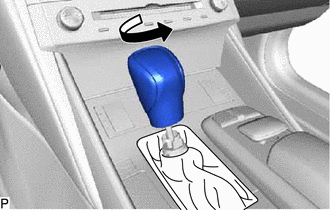

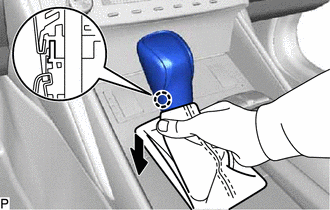

      GTY464091Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE INSTRUMENT PANEL FINISH PANEL END LH
    1. for Hard Type:
      1. Using a moulding remover, disengage the 3 clips in the direction indicated by the arrow (1) in the illustration.

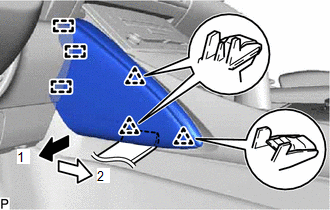

        GTY462247Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Pull the instrument panel finish panel end LH in the direction indicated by the arrow (2) in the illustration to disengage the 3 guides and remove the instrument panel finish panel end LH.
    2. for Soft Type:
      1. Using a moulding remover, disengage the claw and 2 clips in the direction indicated by the arrow (1) in the illustration.

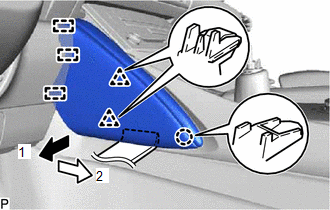

        GTY456252Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Pull the instrument panel finish panel end LH in the direction indicated by the arrow (2) in the illustration to disengage the 3 guides and remove the instrument panel finish panel end LH.
  3. REMOVE INSTRUMENT PANEL FINISH PANEL END RH
    1. for Hard Type:
      1. Using a moulding remover, disengage the 3 clips in the direction indicated by the arrow (1) in the illustration.

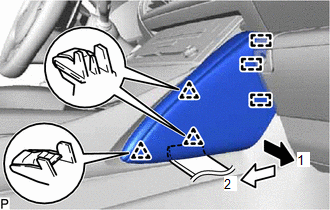

        GTY464956Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Pull the instrument panel finish panel end RH in the direction indicated by the arrow (2) in the illustration to disengage the 3 guides and remove the instrument panel finish panel end RH.
    2. for Soft Type:
      1. Using a moulding remover, disengage the claw and 2 clips in the direction indicated by the arrow (1) in the illustration.

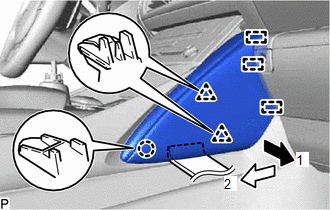

        GTY459846Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Pull the instrument panel finish panel end RH in the direction indicated by the arrow (2) in the illustration to disengage the 3 guides and remove the instrument panel finish panel end RH.
  4. REMOVE FRONT PANEL GARNISH LH
    1. Remove the 2 screws.

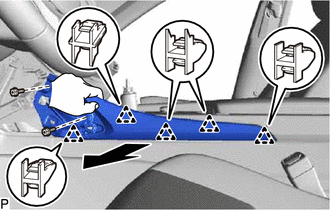

      GTY470256Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 5 clips to remove the front panel garnish LH.
  5. REMOVE FRONT PANEL GARNISH RH
    1. Remove the 2 screws.

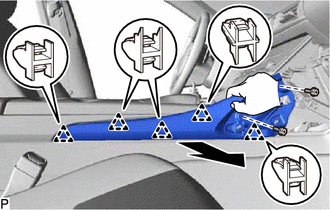

      GTY464097Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 5 clips to remove the front panel garnish RH.
  6. REMOVE FRONT NO. 1 CONSOLE BOX INSERT
    1. Disengage the clip in the direction indicated by the arrow (1) in the illustration.

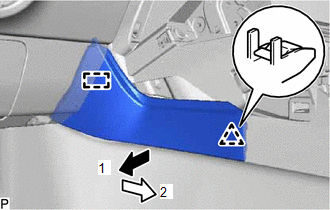

      GTY467066Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Pull the front No. 1 console box insert in the direction indicated by the arrow (2) in the illustration to disengage the guide and remove the front No. 1 console box insert.
  7. REMOVE FRONT NO. 2 CONSOLE BOX INSERT
    1. Disengage the clip in the direction indicated by the arrow (1) in the illustration.

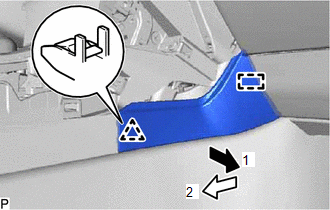

      GTY459632Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Pull the front No. 2 console box insert in the direction indicated by the arrow (2) in the illustration to disengage the guide and remove the front No. 2 console box insert.
  8. REMOVE CONSOLE PANEL SUB-ASSEMBLY
    1. Remove the screw.

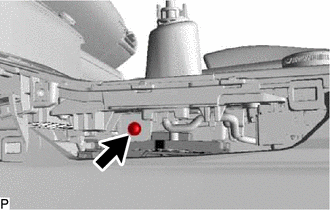

      GTY470258Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Move the shift lever to N.
    3. Disengage the 11 claws, clip and 7 guides as shown in the illustration.

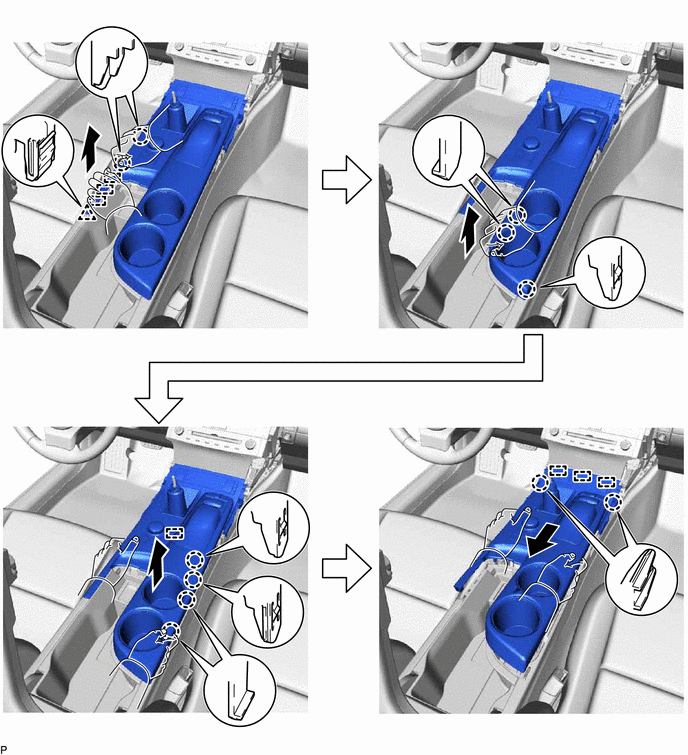

      GTY464083Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Disconnect each connector to remove the console panel sub-assembly.
  9. REMOVE LEXUS DISPLAY AUDIO CONTROLLER (for Radio and Display Type)

    Refer to PROCEDURE - Step 7

  10. REMOVE REMOTE TOUCH (for Multi-Media Module Receiver Type)

    Refer to PROCEDURE - Step 7

  11. REMOVE NO. 2 CONSOLE BOX SILENCER PAD
    1. Remove the 2 No. 2 console box silencer pads.

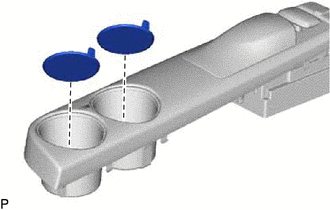

      GTY459046Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

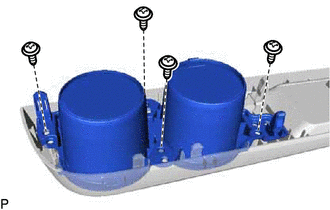

  12. REMOVE INSTRUMENT PANEL CUP HOLDER
    1. Remove the 4 screws and remove the instrument panel cup holder.
      GTY470253Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. REMOVE CONSOLE BOX REGISTER ASSEMBLY
    1. Using a moulding remover, disengage the 6 claws, 2 clips and guide and remove the console box register assembly as shown in the illustration.

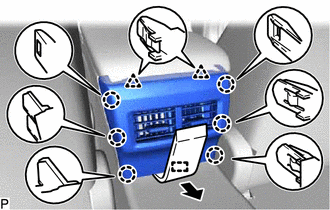

      GTY464081Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE CONSOLE BOX ASSEMBLY
    1. Disconnect each connector.
    2. Remove the 6 bolts.

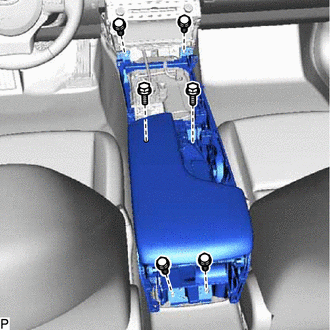

      GTY464080Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Pull the rear part of the console box assembly as shown in the illustration to disengage the 2 guides and remove the console box assembly.

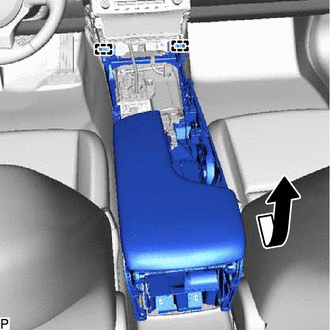

      GTY464079Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
