Removal [09/2020 - ]: Procedure

  1. REMOVE SPOT LIGHT ASSEMBLY

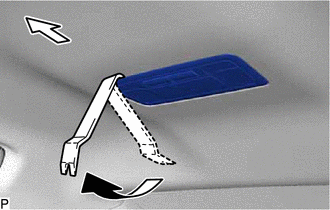

    1. Using the moulding remover as shown in the illustration, raise the roof headlining assembly until the clip of the spot light assembly can be seen.
      GTY971886Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Front
      NOTE:

      Be careful not to damage the roof headlining assembly.

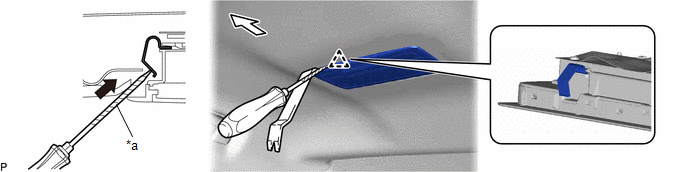

    2. While continuing to hold the moulding remover, disengage the clip using a screwdriver wrapped with protective tape.
      GTY971005Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape - -
      Push in this Direction Front
      NOTE:

      Be careful not to damage the roof headlining assembly.

    3. Slide the moulding remover as shown in the illustration and raise the roof headlining assembly until the clip of the spot light assembly can be seen.
      GTY971565Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Front
      NOTE:

      Be careful not to damage the roof headlining assembly.

    4. While continuing to hold the moulding remover, disengage the clip using a screwdriver wrapped with protective tape.
      GTY971332Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape - -
      Push in this Direction Front
      NOTE:

      Be careful not to damage the roof headlining assembly.

    5. Disengage the 2 guides.
      GTY970519Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Front
    6. Disconnect the connector to remove the spot light assembly.
