Removal [09/2022 - ]: Procedure

  1. REMOVE MAP LIGHT ASSEMBLY
    1. Using a moulding remover, disengage the 4 clips.
      GTY970662Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 guides.
    3. Disconnect each connector to remove the map light assembly.
  2. REMOVE ROOF CONSOLE BOX INNER COVER

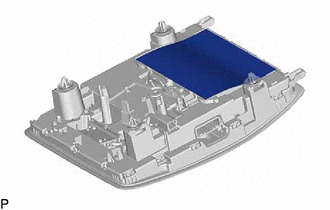

    1. Remove the roof console box inner cover.
      GTY1138487Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE INTERIOR ILLUMINATION LIGHT
    1. Disengage the 2 clamps.
      GTY1138401Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the interior illumination light with the 4 screws.
      GTY1138489Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE MAP LIGHT ASSEMBLY
