Removal [09/2020 - 09/2022]: Procedure

  1. REMOVE MAP LIGHT ASSEMBLY
    1. Using a moulding remover, disengage the 4 clips.
      GTY970662Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 guides.
    3. Disconnect each connector to remove the map light assembly.
  2. REMOVE ROOF CONSOLE BOX INNER COVER
    1. Remove the roof console box inner cover.

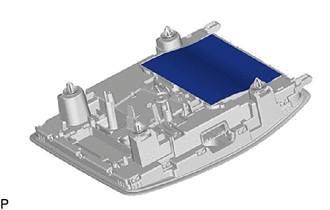

      GTY971788Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE MAP LIGHT ASSEMBLY
