Removal [09/2020 - ]: Procedure

  1. REMOVE COMBINATION METER ASSEMBLY

    Refer to REMOVAL [09/2020 - ]

  2. REMOVE DCM (TELEMATICS TRANSCEIVER) WITH BRACKET
    1. Disconnect each connector.

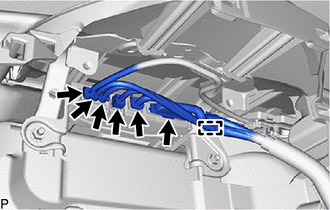

      GTY971254Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the clamp.
    3. Remove the 2 nuts and DCM (telematics transceiver) with bracket.

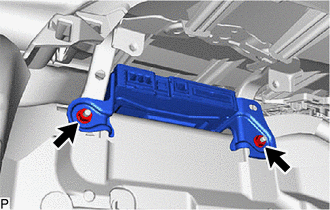

      GTY970609Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE NO. 2 TELEPHONE BRACKET
    1. GTY971256Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Remove the screw and No. 2 telephone bracket.

  4. REMOVE NO. 1 TELEPHONE BRACKET
    1. GTY971255Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Remove the screw and No. 1 telephone bracket.

  5. REMOVE DCM (TELEMATICS TRANSCEIVER)
